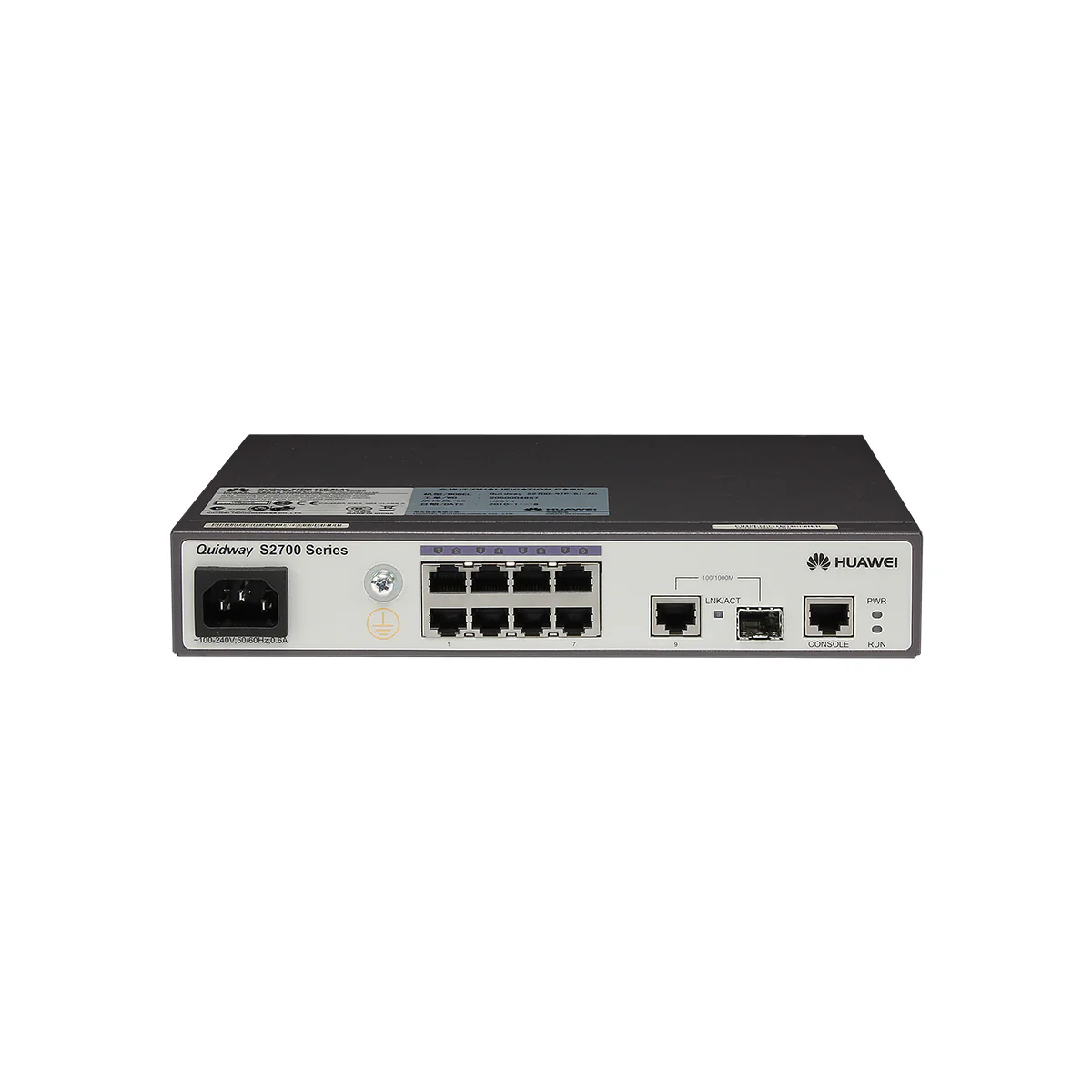

Huawei S2700-9TP-EI-AC Layer 2 Fast Ethernet Switches

The Huawei S2700-9TP-EI-AC is a Layer 2 Fast Ethernet switch designed for small to medium-sized enterprise networks. It features 8 10/100BASE-TX ports and one dual-purpose 10/100/1000BASE-T or SFP uplink port, providing flexible deployment options.

With a switching capacity of 32 Gbps and a forwarding rate of 2.68 Mpps, this fanless switch ensures reliable performance with low power consumption. Its comprehensive security features, QoS capabilities, and IPv6 support make it a versatile solution for various networking needs.

Overview

Highlights

Flexible Port Configuration: 8 10/100BASE-TX ports and 1 dual-purpose 10/100/1000BASE-T or SFP uplink port.
High Performance: 32 Gbps switching capacity and 2.68 Mpps forwarding rate ensure efficient data handling.
Fanless Design: Natural heat dissipation for silent operation and reduced power consumption.
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, and port isolation.
Advanced QoS: Supports traffic classification, rate limiting, and multiple queue scheduling algorithms.
IPv6 Support: Includes IPv6 host, static routes, and MLD snooping for future-proof networking.
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.

Recommended Accessories

Product Model	Category	Description
SFP-FE-SX-MM1310	SFP Transceiver	100BASE-FX SFP, 1310nm, multimode fiber, up to 2 km
eSFP-FE-LX-SM1310	SFP Transceiver	100BASE-LX SFP, 1310nm, single-mode fiber, up to 15 km
S-SFP-FE-LH40-SM1310	SFP Transceiver	100BASE-LH SFP, 1310nm, single-mode fiber, up to 40 km
SFP-1000BaseT	SFP Transceiver	1000BASE-T SFP, RJ45 interface, up to 100 m over Cat5e cable
eSFP-GE-SX-MM850	SFP Transceiver	1000BASE-SX SFP, 850nm, multimode fiber, up to 550 m
SFP-GE-LX-SM1310	SFP Transceiver	1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10 km
S-SFP-GE-LH40-SM1310	SFP Transceiver	1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40 km
S-SFP-GE-LH40-SM1550	SFP Transceiver	1000BASE-LH SFP, 1550nm, single-mode fiber, up to 40 km

Comparison with Similar Items

Feature	S2700-9TP-EI-AC	S2700-18TP-EI-AC	S2700-26TP-EI-AC
Downlink Ports	8 × 10/100BASE-TX	16 × 10/100BASE-TX	24 × 10/100BASE-TX
Uplink Ports	1 × combo GE/SFP	2 × combo GE/SFP	2 × combo GE/SFP
Switching Capacity	32 Gbps	32 Gbps	32 Gbps
Forwarding Rate	2.68 Mpps	5.36 Mpps	8.96 Mpps
Power Supply	AC	AC	AC
PoE Support	No	No	No
Management	Web, CLI, SNMP	Web, CLI, SNMP	Web, CLI, SNMP
Ideal Use Case	Small networks	Medium networks	Larger networks

Specifications

Parameter	Specification
Model	S2700-9TP-EI-AC
Downlink Ports	8 × 10/100BASE-TX ports
Uplink Ports	1 × combo port (10/100/1000BASE-T or 100/1000BASE-X SFP)
Switching Capacity	32 Gbps
Forwarding Rate	2.68 Mpps
MAC Address Table	8K entries
VLANs	Supports up to 4,000 VLANs (IEEE 802.1Q)
QoS	4 or 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms
IPv6 Features	IPv6 host, static routes, MLD v1/v2 snooping
Security Features	802.1X, MAC filtering, DHCP snooping, port isolation, storm control
Management	Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2
Power Supply	AC 100–240V, 50/60 Hz
Power Consumption	<12.8 W
Operating Temperature	0°C to 50°C (32°F to 122°F)
Dimensions (W×D×H)	250 mm × 180 mm × 43.6 mm (9.84 in. × 7.09 in. × 1.72 in.)
Weight	<1.4 kg (3.09 lbs)
Warranty	Limited lifetime warranty
