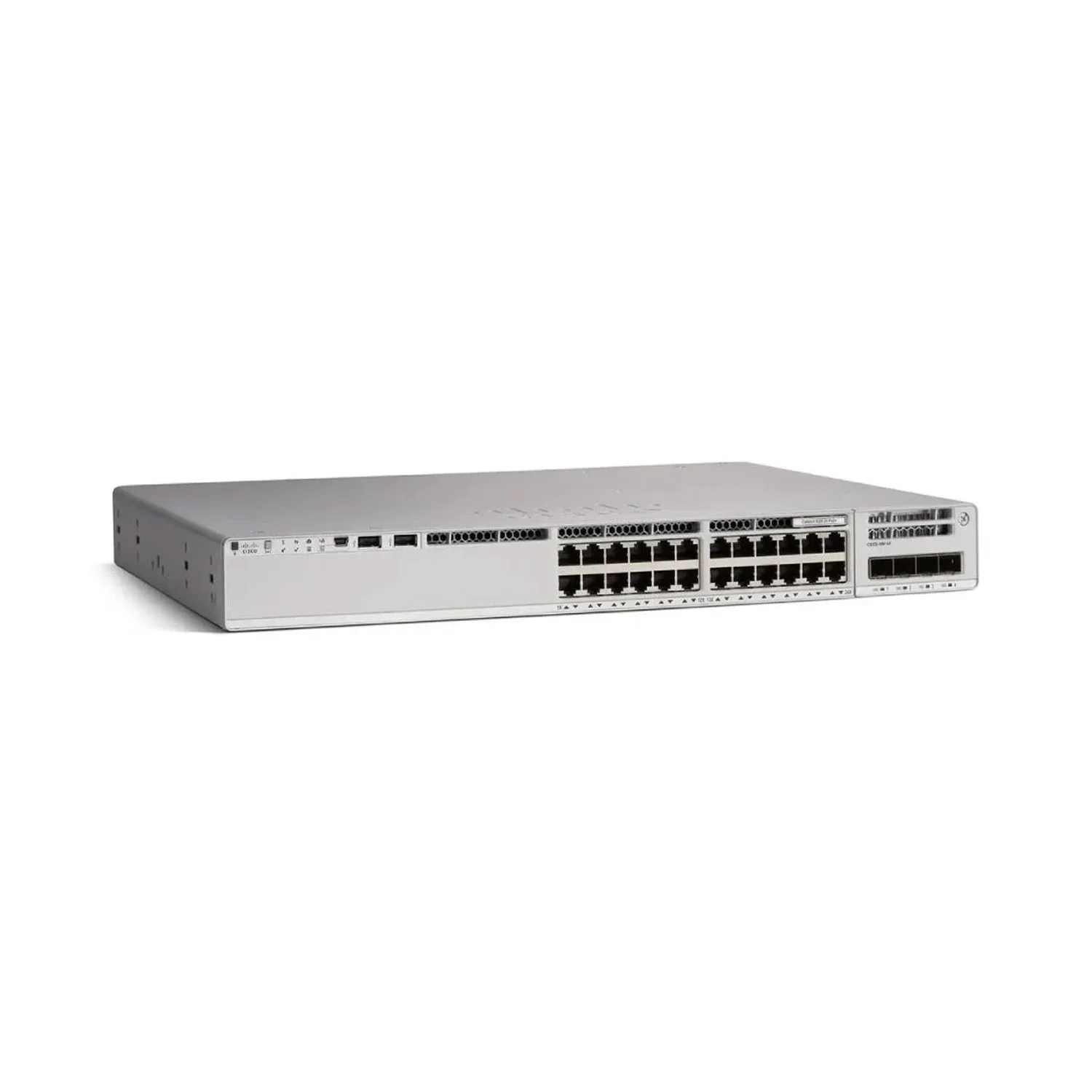

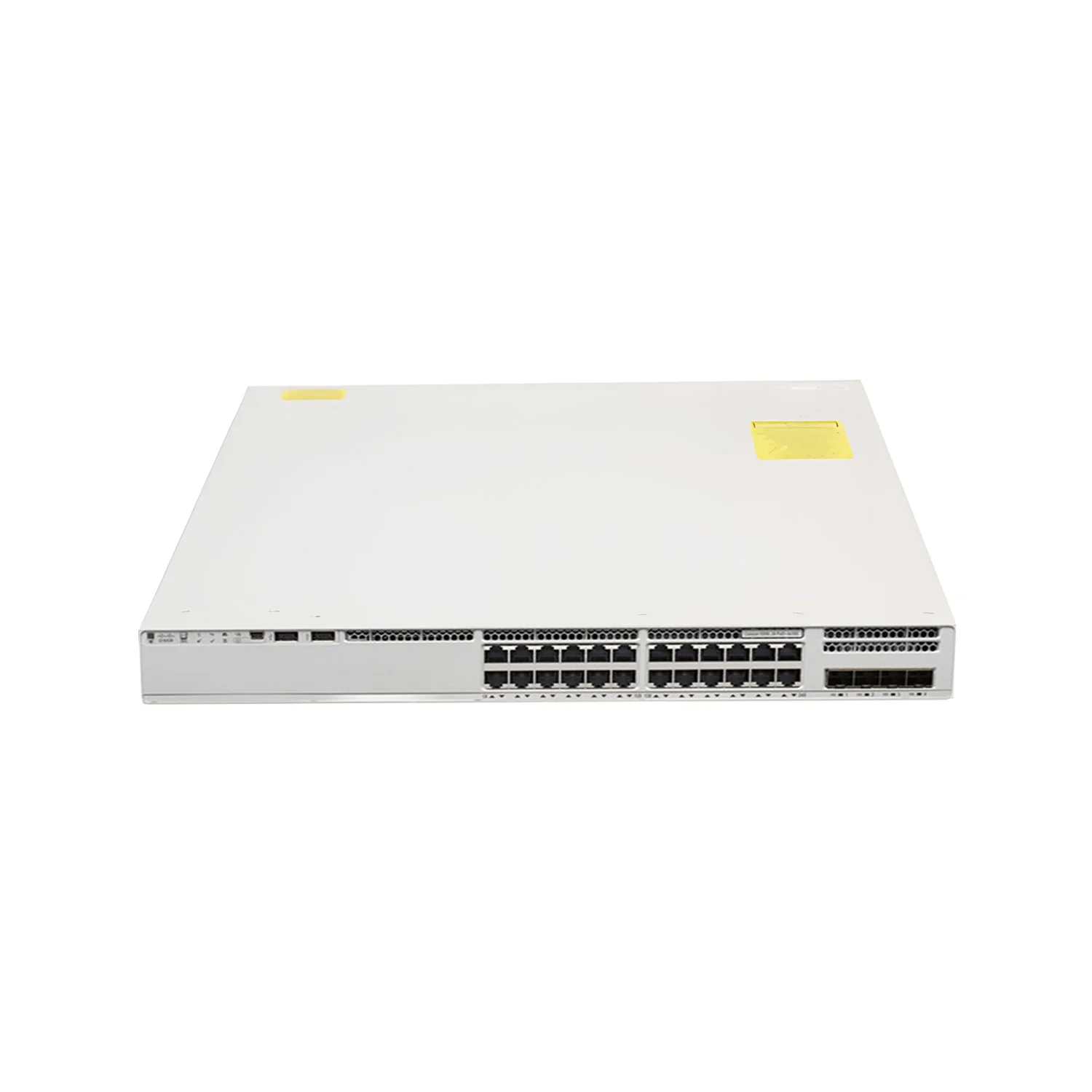

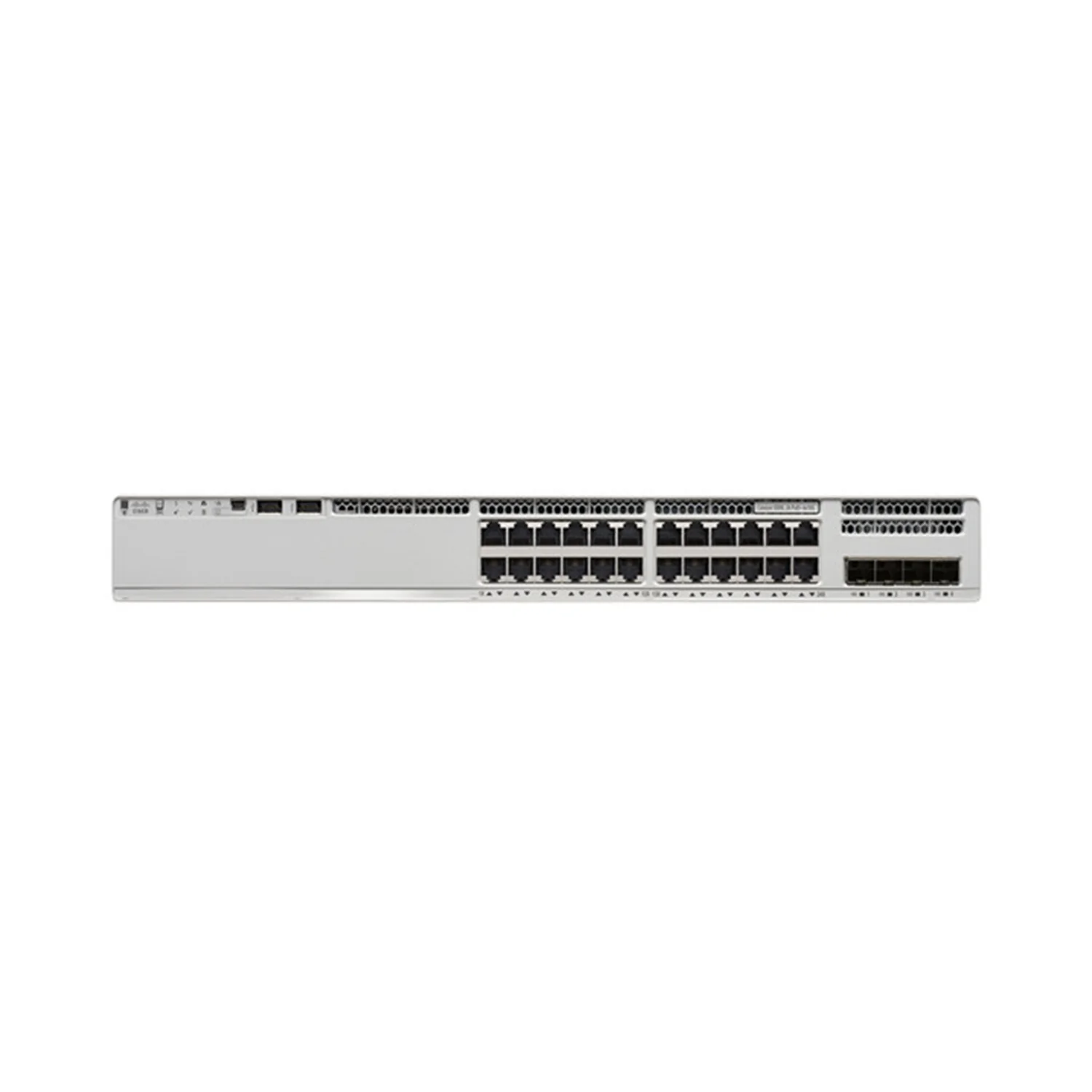

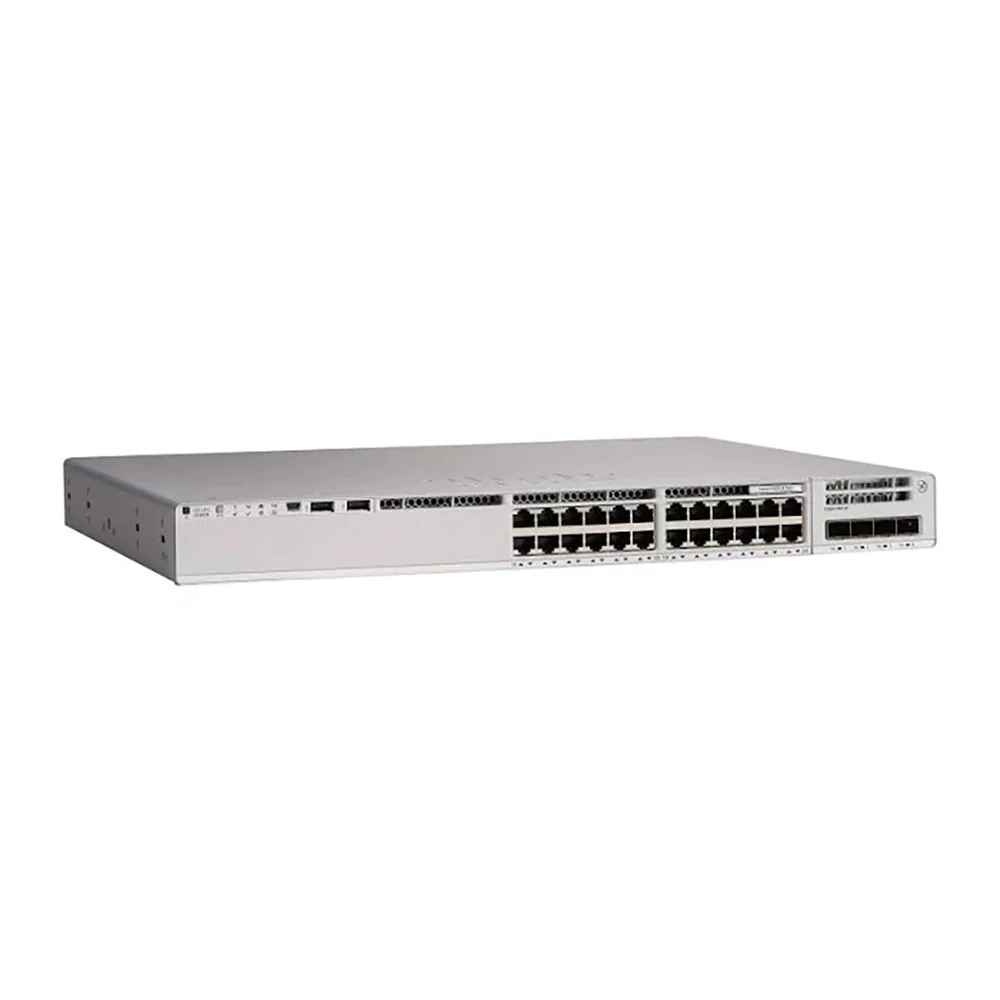

Cisco Catalyst C9200-24P 24-Port PoE+ Switch with Modular Uplinks
Overview
The Cisco Catalyst C9200-24P is a modular uplink enterprise access switch designed for branch offices, campus edge networks, retail chains, and high-density PoE deployments.
It provides 24 Gigabit PoE+ ports (up to 30W per port) and supports interchangeable uplink modules (1G / 10G), enabling flexible network expansion without hardware replacement.
Powered by Cisco's UADP 2.0 ASIC, the switch delivers 128 Gbps switching capacity and 95.23 Mpps forwarding performance, ensuring wire-speed throughput with ultra-low latency, even under burst traffic conditions.
With StackWise-160, FRU redundant hardware, and support for up to 4 Virtual Networks, the C9200-24P is ideal for:
-
Enterprise campus access layer
-
Retail stores & chain deployments
-
Wi-Fi 6 / Wi-Fi 5 access point aggregation
-
IP surveillance (CCTV) systems
-
VoIP phone networks
-
Smart office & IoT environments
Unlike fixed-uplink models, the C9200-24P offers true modular architecture, allowing IT teams and resellers to deploy a single hardware platform adaptable to multiple network scenarios.
Highlights
1. 24 Gigabit PoE+ Access Ports
-
10/100/1000 autosensing RJ-45
-
Up to 30W per port (IEEE 802.3at)
-
Ideal for:
-
Wireless AP (Wi-Fi 5 / Wi-Fi 6)
-
IP cameras
-
VoIP phones
-
IoT endpoints
-
2. Flexible PoE Power Deployment
-
370W PoE budget (single PSU: PWR-C6-600WAC)
-
Up to 740W PoE (dual PSU configuration)
Ensures accurate power planning for:
-
SMB office deployments
-
Retail + surveillance systems
-
Enterprise edge environments
3. Modular Uplink Architecture (Core Advantage)
Supports interchangeable uplink modules:
-
C9200-NM-4G: 4 x 1G uplinks
-
C9200-NM-4X: 4 x 10G uplinks
Perfect for:
-
Gradual bandwidth upgrades
-
Aggregation to core switches
-
Future-proof infrastructure
4. High Performance + Ultra-Low Latency Design
-
Switching Capacity: 128 Gbps
-
Forwarding Rate: 95.23 Mpps
-
Packet Buffer: 6 MB
Engineering advantages:
-
Handles burst traffic without packet loss
-
Reduces congestion in high-density environments
-
Ensures ultra-low latency for voice, video, and real-time apps
5. StackWise-160 High Availability
-
Up to 160 Gbps stacking bandwidth
-
Up to 8 switches per stack
-
Sub-50 ms failover
-
Cross-stack EtherChannel

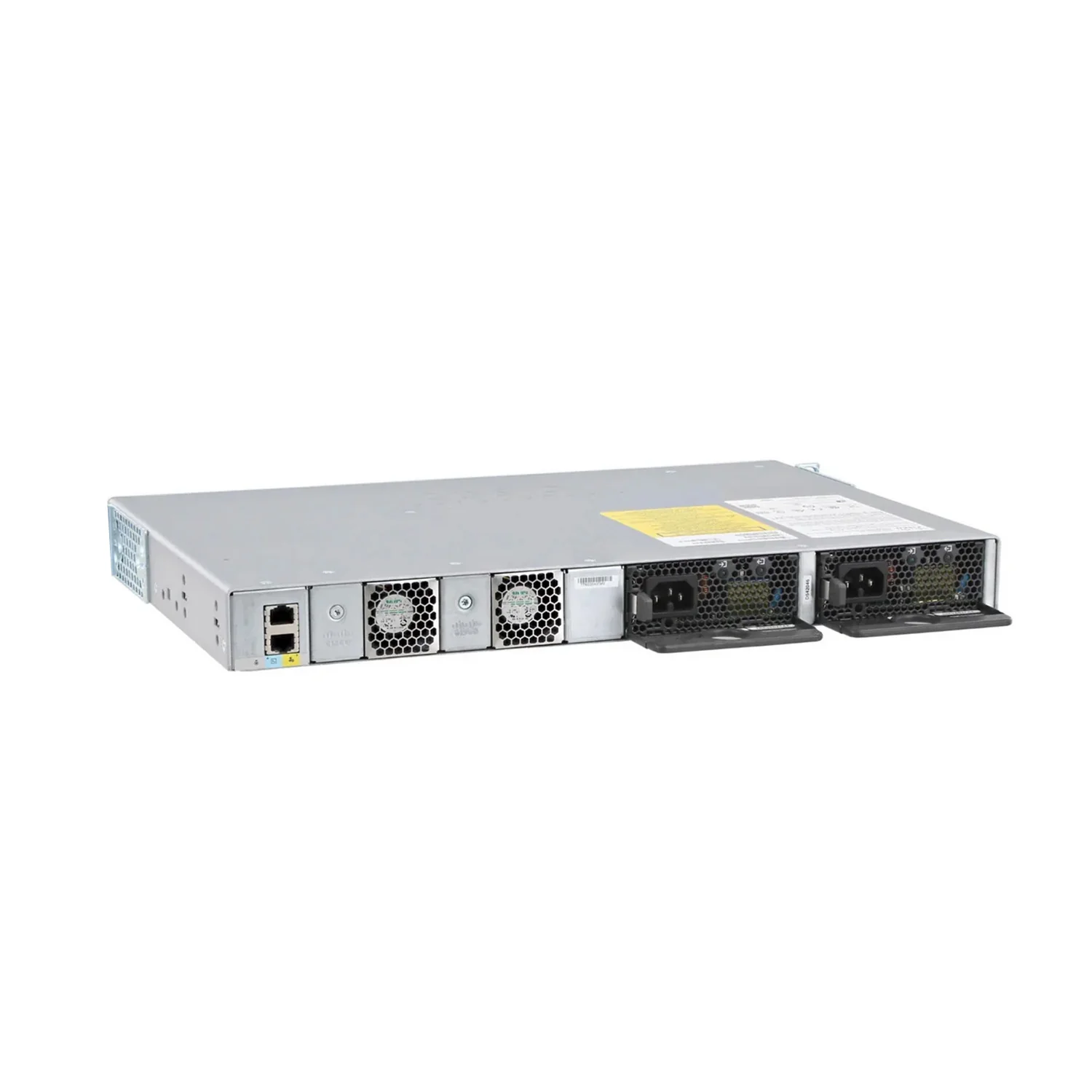

6. Enterprise Hardware Redundancy (FRU Design)
-
Field-replaceable redundant fans (FRU)
-
Redundant power supply support
Key difference vs C9200L:
-
No downtime maintenance
-
Enterprise-grade reliability
7. Advanced Network Virtualization
-
Supports up to 4 Virtual Networks (VN) in SD-Access
Critical for:
-
Multi-tenant enterprise networks
-
Department isolation (HR / Finance / Guest)
-
Large campus segmentation
Note: C9200L models are limited to 1 Virtual Network only
8. Enterprise-Grade Security
-
AES-128 MACsec encryption
-
Secure Boot + Trust Anchor
-
802.1X authentication
-
DHCP Snooping / DAI / IP Source Guard
-
Scalable ACLs
9. Flexible Management & Automation
-
CLI, Web UI, SNMP
-
NETCONF / RESTCONF
-
Plug and Play (PnP)
-
Cisco DNA Center integration
-
Meraki Dashboard support
Software Capability (Essentials vs Advantage)
1. Network Essentials
-
Layer 2 + basic Layer 3
-
Static routing
-
OSPF (limited scale)
-
EIGRP Stub
-
PIM Stub
Best for SMB / branch deployments
2. Network Advantage
-
Full EIGRP, OSPF, IS-IS
-
Advanced multicast (MSDP, BSR)
-
VRF, VXLAN, LISP, SGT
-
SD-Access fabric
Note: BGP is not supported on standard C9200 (only C9200CX compact models).
Recommended Accessories
1. Network Modules
| Model | Description | Use Case |
|---|---|---|
| C9200-NM-4G | 4 x 1G uplink module | Standard aggregation |
| C9200-NM-4X | 4 x 10G uplink module | High-speed uplink |
| C9200-NM-BLANK | Blank module | Airflow / placeholder |
2. Power Supply
| Model | Description | Use Case |
|---|---|---|
| PWR-C6-600WAC | 600W AC PSU | Default / 370W PoE |
| PWR-C6-600WAC (Secondary) | Redundant PSU | Expand to 740W PoE |
Comparison with Similar Models
| Feature | C9200 | C9200L | C9200CX |
|---|---|---|---|
| Uplinks | Modular | Fixed | Fixed |
| Stacking | 160 Gbps | 80 Gbps | N/A |
| Virtual Networks | 4 | 1 | 4 |
| MAC Table | 32K | 16K | 32K |
| IPv4 Routes | 14K | 11K | 14K |
| Packet Buffer | 6 MB | 6 MB | 6 MB |
| Hardware Redundancy | FRU Fans | Fixed Fans | Compact |
| Best For | Enterprise | SMB / branch | Compact edge |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200-24P |
| Downlink Ports | 24 x 10/100/1000 RJ-45 PoE+ |
| Uplink Ports | Modular (1G / 10G via NM modules) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Packet Buffer | 6 MB |
| PoE Budget | 370W (single PSU), 740W (dual PSU) |
| Stacking | 160 Gbps (StackWise-160) |
| Virtual Networks | Up to 4 |
| DRAM / Flash | 4 GB / 4 GB |
| MAC Address Table | 32,000 |
| IPv4 Routes | 14,000 (10,000 direct + 4,000 indirect) |
| IPv6 Routes | 2,000 |
| ACL Entries | 1,600 |
| NetFlow Entries | 16,000 |
| Power Supply | PWR-C6-600WAC |
| Fans | FRU redundant fans |
| Operating Temperature | -5°C to +45°C |
| Use Cases | Enterprise access / campus / retail / PoE / IoT |
Why Choose Cisco C9200-24P (Channel Value & ROI)?
-
Modular design = single SKU covers multiple projects
-
Lower inventory risk for resellers
-
Faster delivery for end customers
-
Adaptable for SMB Enterprise scaling
-
Ideal for local stock & rapid deployment scenarios
Perfect for:
-
IT distributors
-
system integrators
-
enterprise procurement teams
