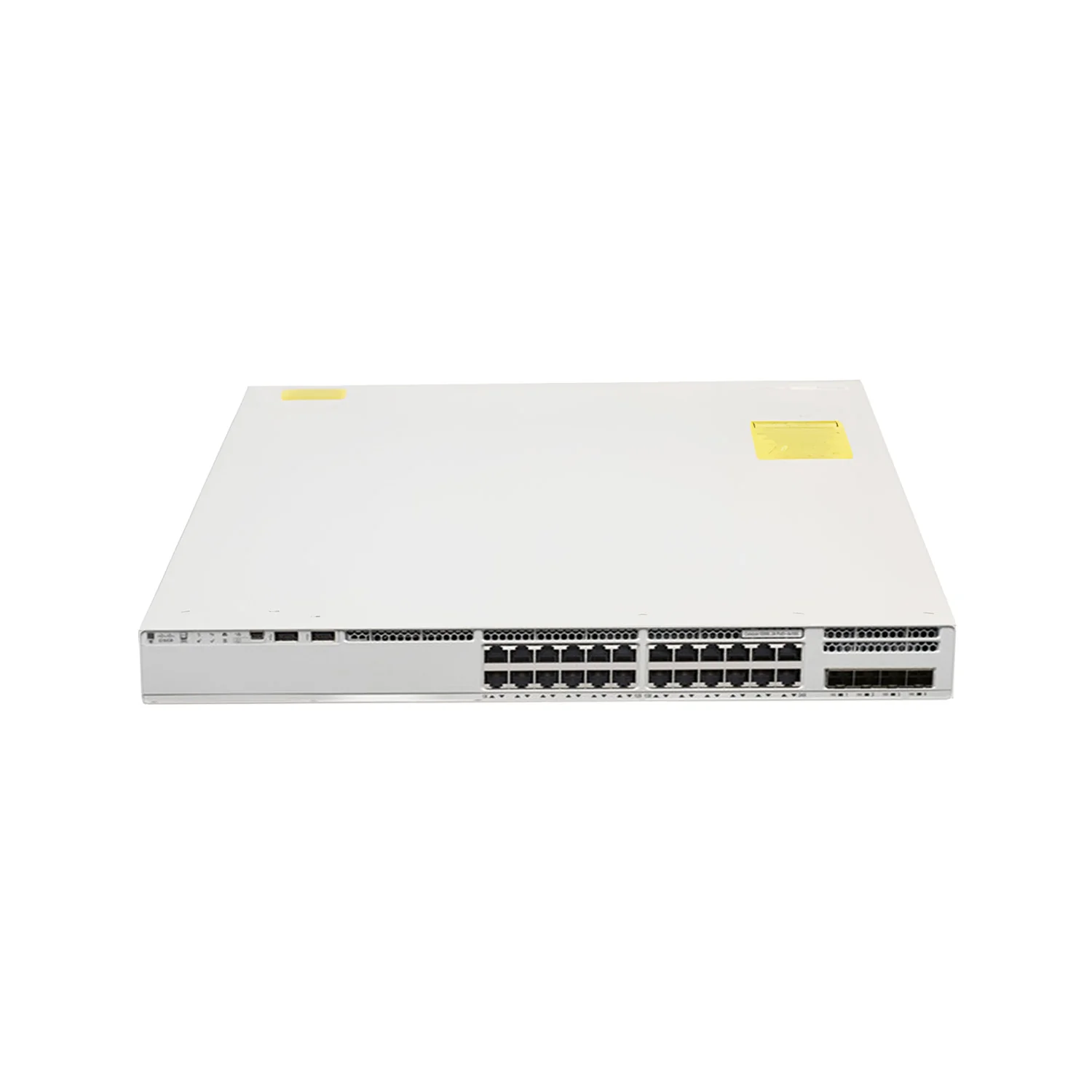

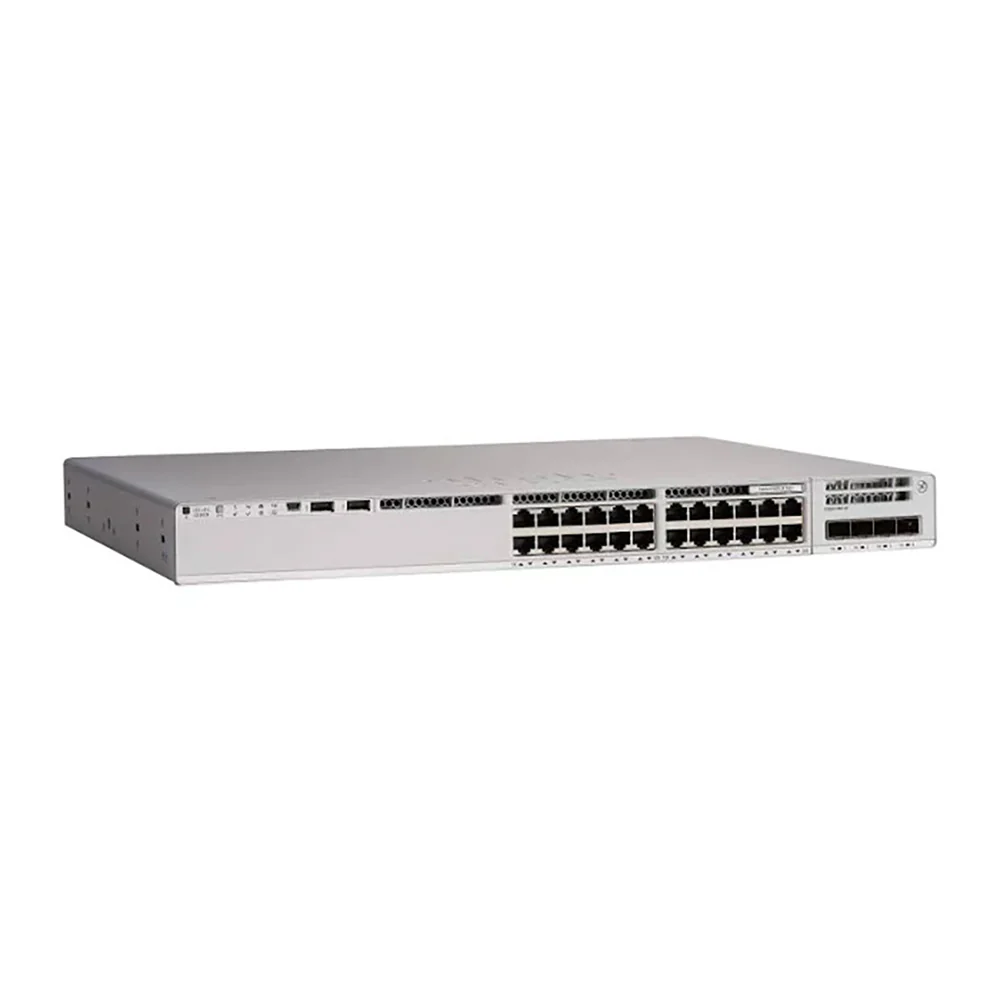

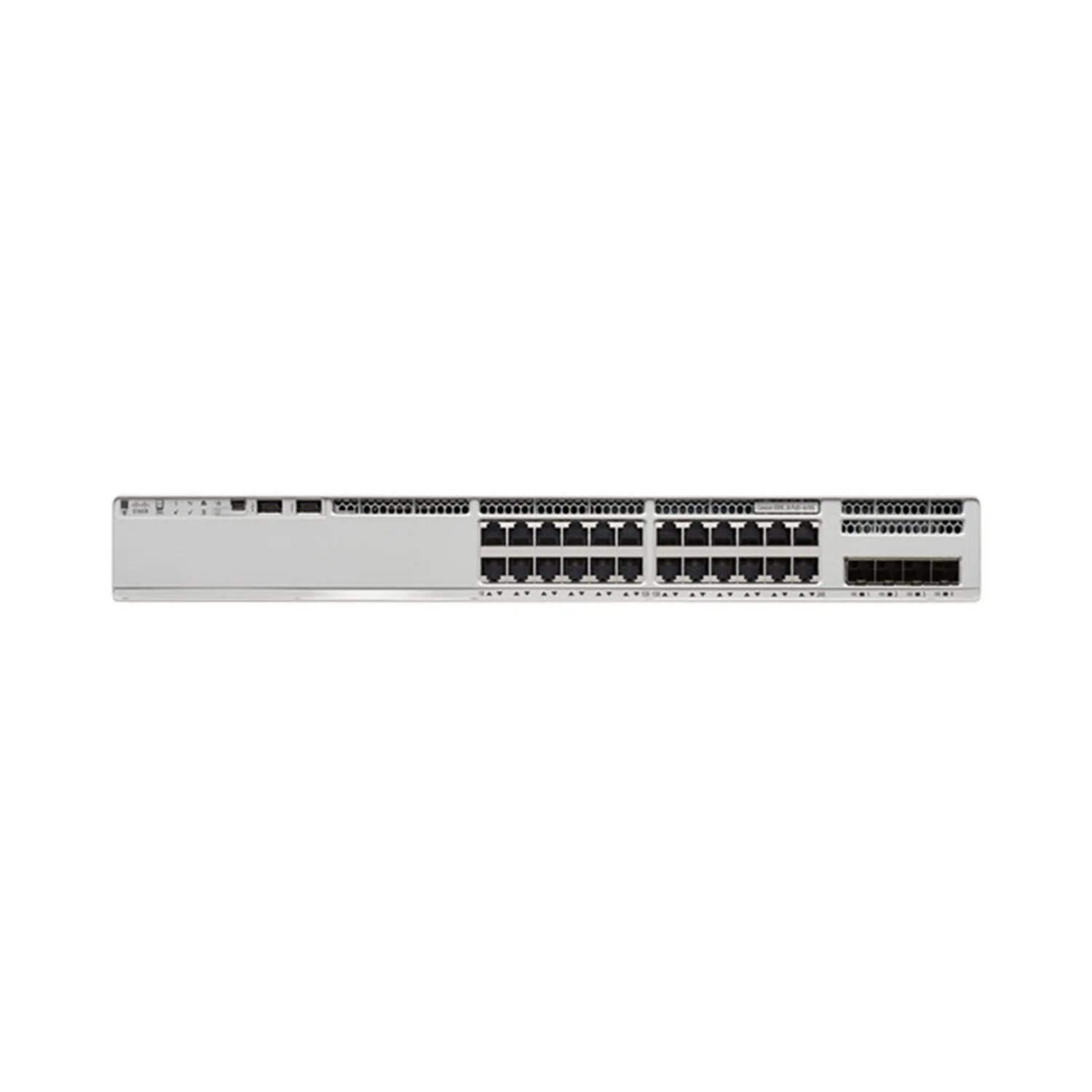

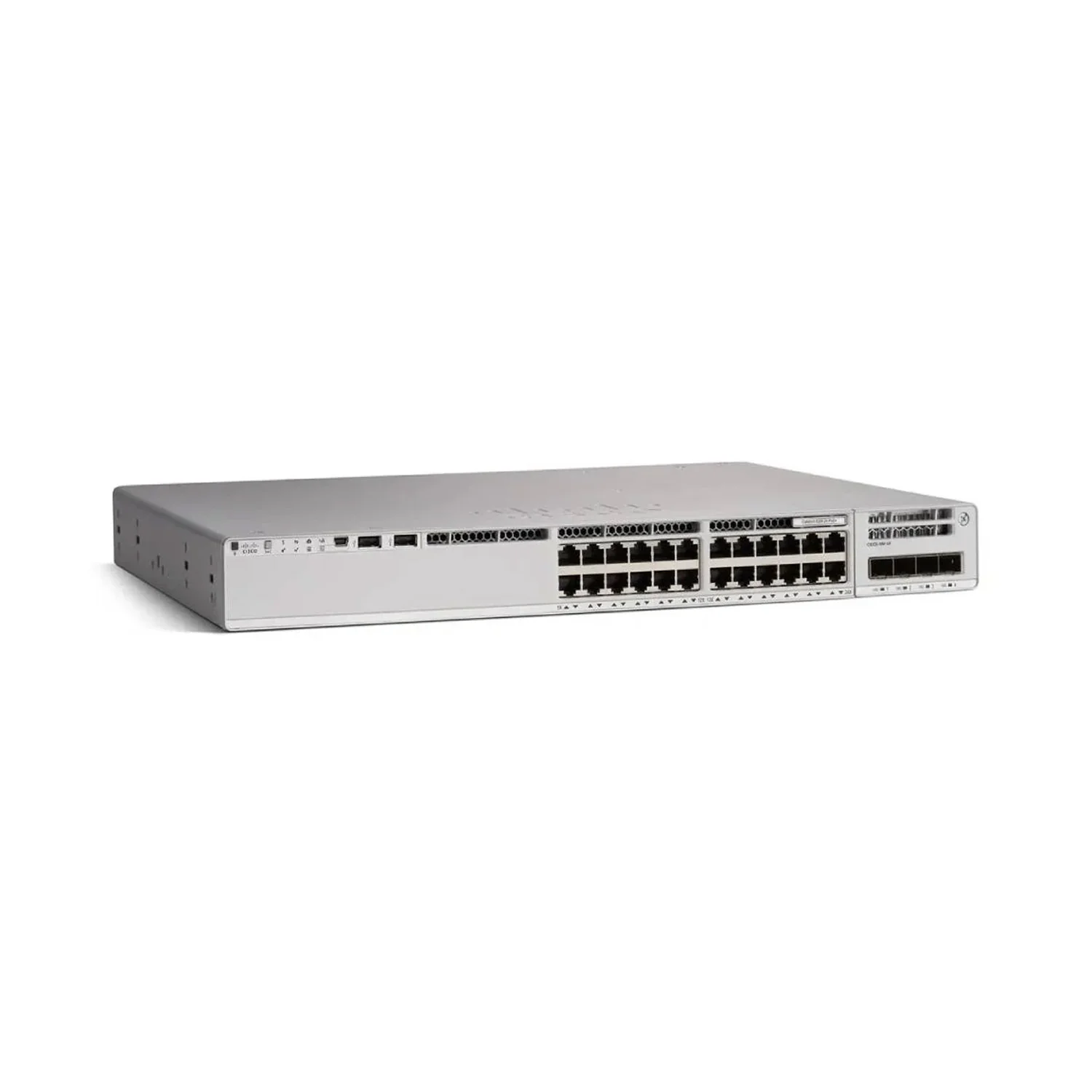

Cisco Catalyst C9200L-24PXG-2Y | 24-Port Multigigabit PoE+ Switch
Overview
The Cisco Catalyst C9200L-24PXG-2Y is a next-generation multigigabit access switch designed for Wi-Fi 6/6E deployments, high-density enterprise access, and performance-driven SMB networks.
It features 24 PoE+ ports (8 multigigabit + 16 1G) and 2 25G SFP28 uplinks, enabling high-throughput connectivity for modern wireless access points, IP cameras, and bandwidth-intensive endpoints.
With a 370W PoE budget (expandable with dual PSU) and powered by the UADP 2.0 Mini ASIC, this switch delivers 292 Gbps switching capacity and 229.16 Mpps forwarding performance, ensuring smooth traffic flow in campus edge, retail aggregation, and branch core access scenarios.
Built on Cisco IOS XE, it supports both Network Essentials and Network Advantage, allowing flexible deployment from standard SMB access layers to SD-Access-ready enterprise environments.
Highlights
-
24 PoE+ Ports (8 Multigigabit + 16 1G)
Supports 100M / 1G / 2.5G / 5G / 10G on mGig ports - ideal for Wi-Fi 6/6E APs, surveillance systems, and IoT aggregation. -
2 25G SFP28 High-Speed Uplinks
Dual-rate 1G / 10G / 25G compatibility enables flexible aggregation to core switches or data center networks. -
370W PoE Budget (Expandable)
Default PWR-C5-600WAC PSU supports dense AP and camera deployments without external injectors. -
High-Performance Architecture
-
292 Gbps switching capacity
-
229.16 Mpps forwarding rate
Ensures wire-speed performance for high-density traffic environments.
-
-
StackWise-80 Resiliency
Stack up to 8 switches with 80 Gbps bandwidth and sub-50 ms failover. -
UADP 2.0 Mini ASIC (Programmable Pipeline)
Enables future-ready forwarding, QoS scaling, and investment protection. -
Enterprise-Grade Security
AES-128 MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard. -
Automation & Cloud-Ready Management
Cisco DNA Center + Meraki Dashboard support for zero-touch provisioning and monitoring.
Use Cases & Deployment Scenarios
-
Wi-Fi 6 / Wi-Fi 6E Access Layer
Multigigabit ports eliminate wireless bottlenecks in enterprise offices, campuses, and education networks. -
Retail & Chain Store Networks
Power POS systems, cameras, and APs with centralized management and rapid deployment. -
SMB & Branch Office Infrastructure
Ideal for local inventory stocking and fast rollout for regional IT integrators. -
Smart Building & IoT Aggregation
Connect sensors, access control, cameras, and automation systems with PoE+. -
High-Density Surveillance Networks
Reliable PoE+ power and bandwidth for multi-camera deployments.
Recommended Accessories
| Model | Description | Use Case |
|---|---|---|
| PWR-C5-600WAC | 600W AC PSU (default) | Standard PoE deployment |
| PWR-C5-600WAC (Secondary) | Redundant PSU | Increase power redundancy |
| C9200L-STACK-KIT | Stack kit | Enable StackWise-80 |
| STACK-T4-1M | Stacking cable | Switch stacking |
| SFP28-25G-SR | 25G SFP28 | Short-range uplink |
| SFP28-25G-LR | 25G SFP28 | Long-distance uplink |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Budget | Best For |
|---|---|---|---|---|
| C9200L-24PXG-2Y | 8 mGig + 16 x 1G | 2 x 25G | 370W | Wi-Fi 6 / Enterprise |
| C9200L-48PXG-2Y | 8 mGig + 40 x 1G | 2 x 25G | 740W | Large campus |
| C9200L-24PXG-4X | 8 mGig + 16 x 1G | 4 x 10G | 370W | 10G aggregation |
Specifications
| Parameter | Specification | Value |
|---|---|---|
| Product Code | C9200L-24PXG-2Y | - |
| Ports | 8 x mGig + 16 x 1G PoE+ | High-density access |
| Uplinks | 2 x 1/10/25G SFP28 | Flexible aggregation |
| PoE Budget | 370W | Device power |
| Switching Capacity | 292 Gbps | Non-blocking |
| Forwarding Rate | 229.16 Mpps | Wire-speed |
| Stacking | 80 Gbps | Scalability |
| DRAM / Flash | 2 GB / 4 GB | System |
| MAC Table | 16,000 | Network scale |
| Jumbo Frame | 9198 bytes | Large data |

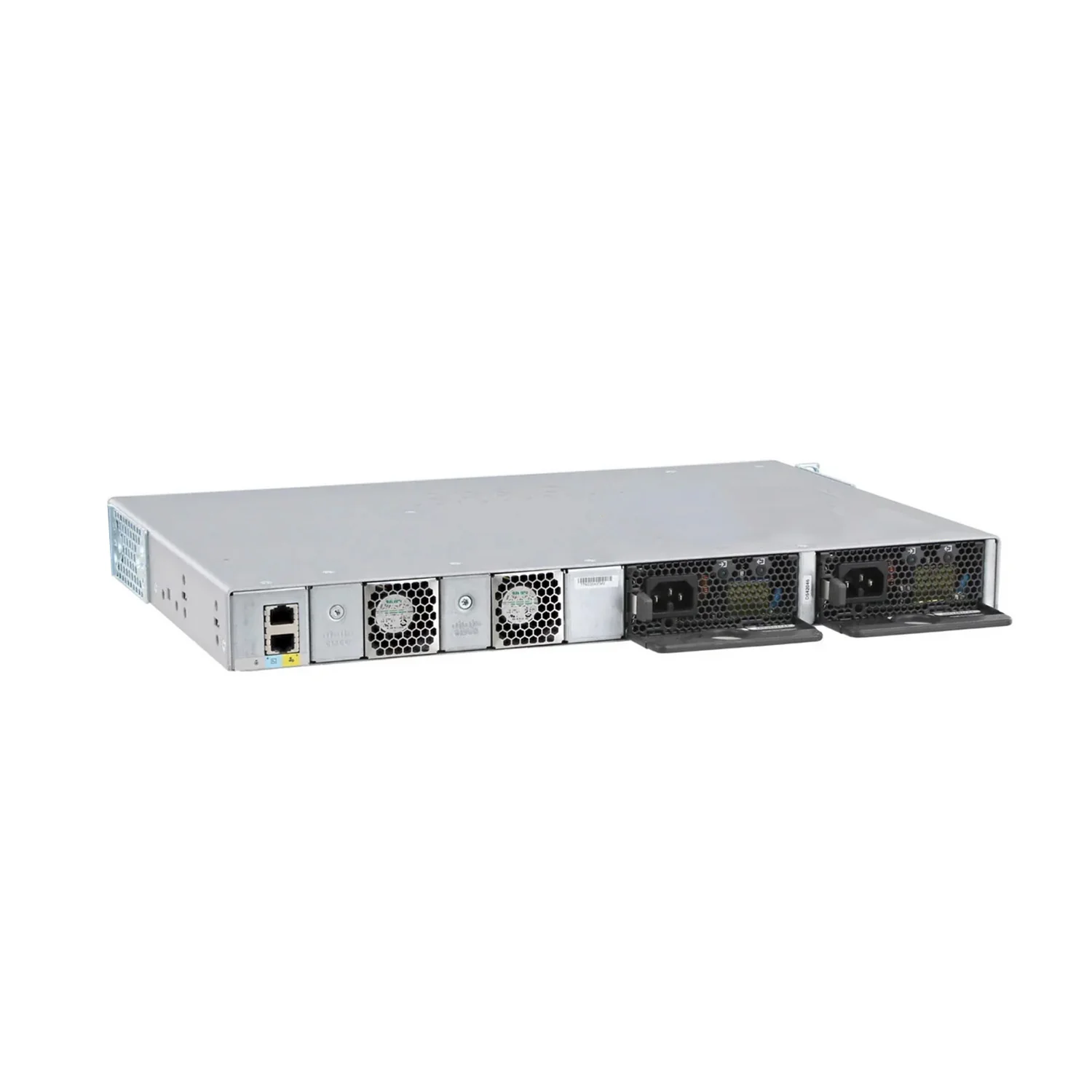

| Power Supply | Dual PWR-C5-600WAC | Redundant |
| Weight | 12 lb (5.44 kg) | Rack deployment |
| MTBF | 374,730 hours | Reliability |
Why Choose the C9200L-24PXG-2Y Switch?
-
Optimized for Wi-Fi 6/6E Era
True multigigabit support removes access-layer bottlenecks. -
Future-Proof 25G Uplinks
Smooth migration path to high-speed aggregation and core networks. -
Enterprise-Grade Reliability
MTBF of 374,730 hours ensures long-term stability in mission-critical deployments. -
Flexible Licensing (Essentials vs Advantage)
Scale from basic L3 access to advanced segmentation (VRF, VXLAN, SD-Access). -
Perfect for Channel Partners & Local Stocking
High-demand SKU for SMB, retail, and branch deployments, enabling fast delivery and turnover.
