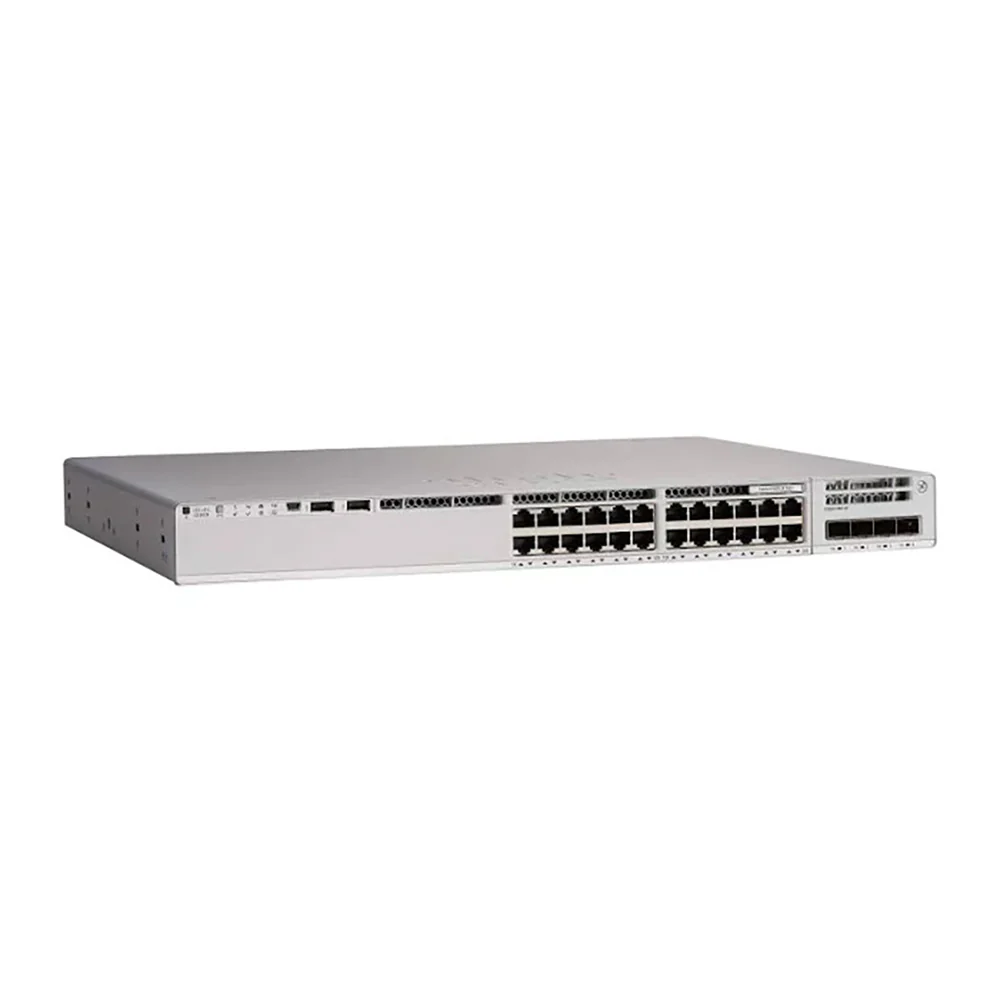

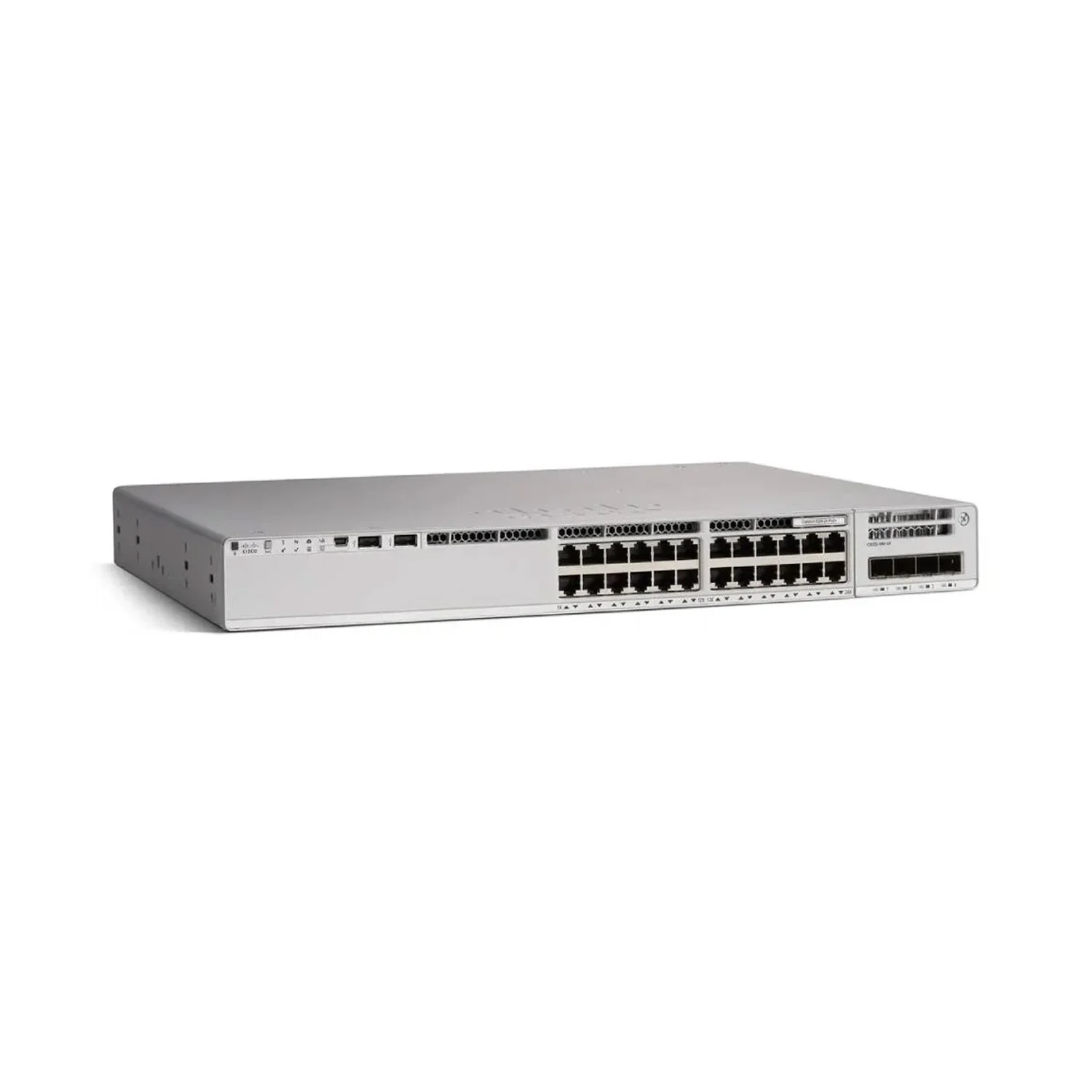

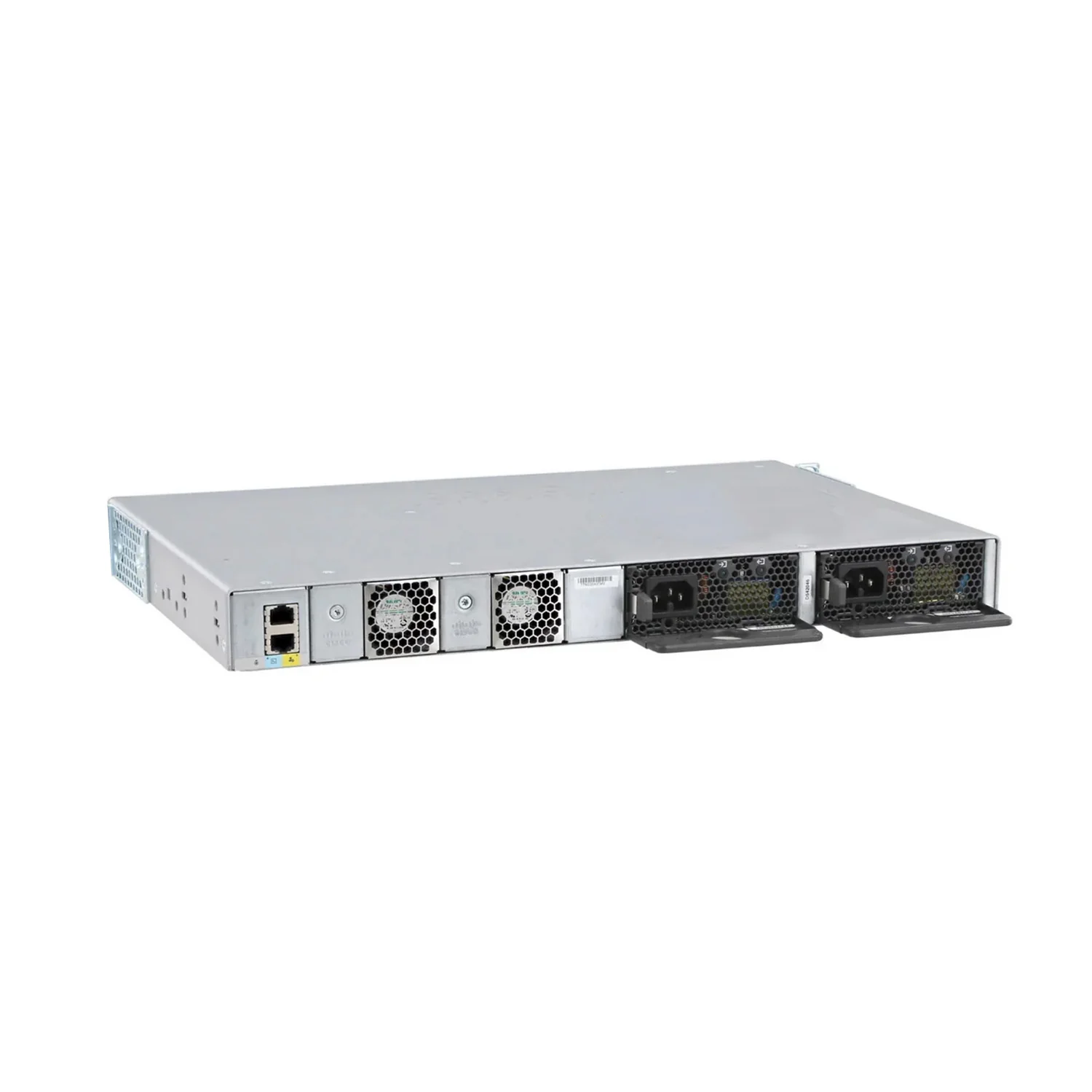

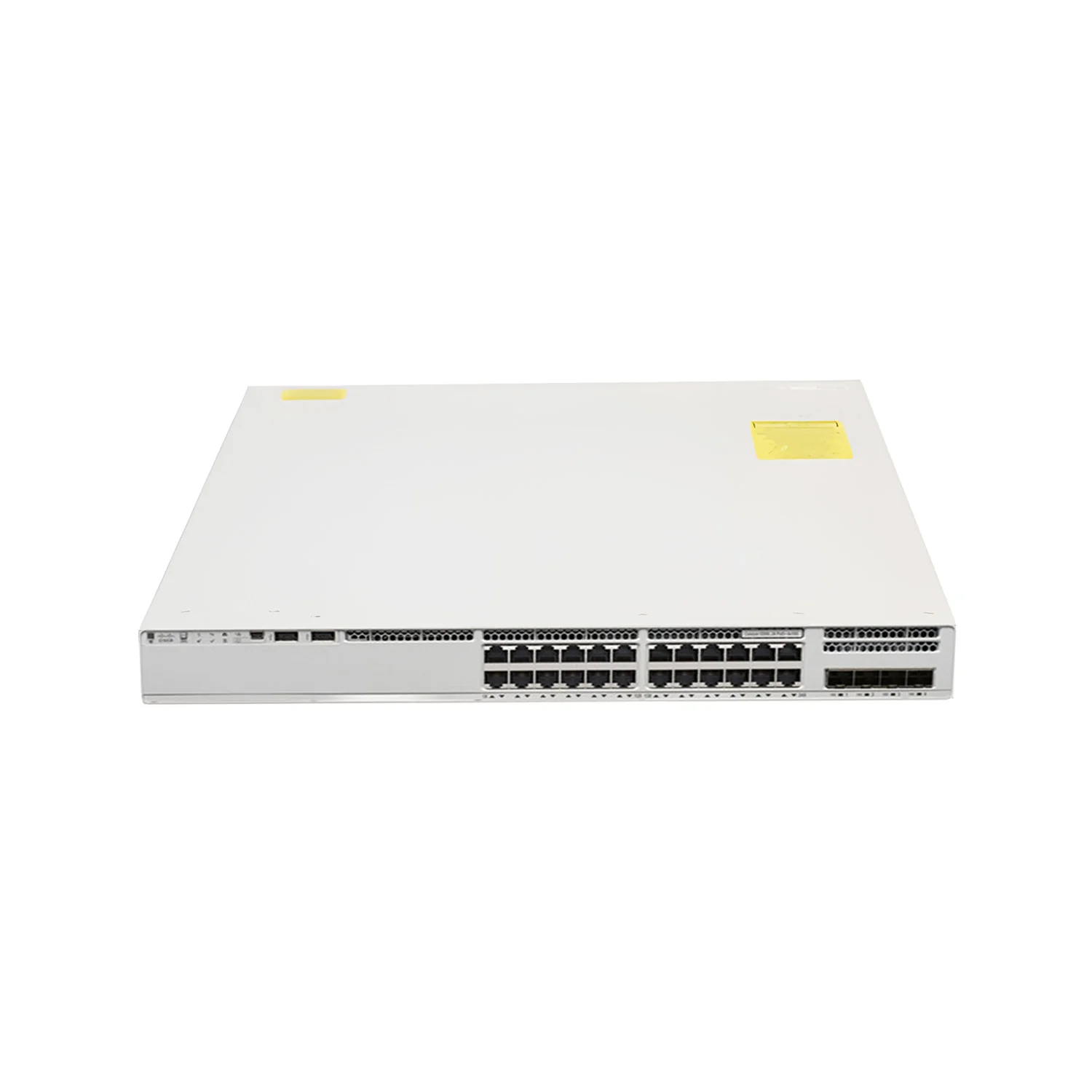

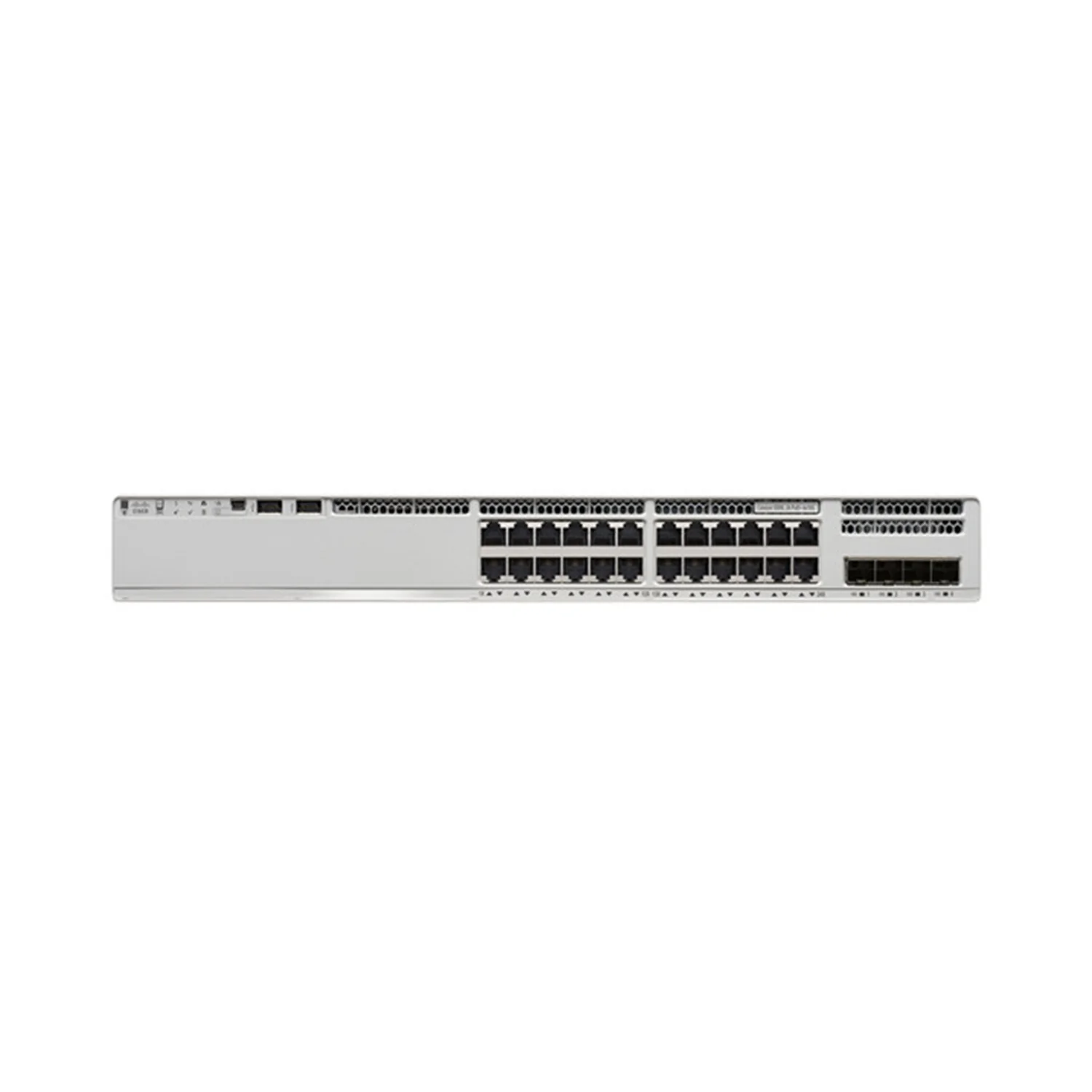

Cisco Catalyst C9200L-24T-4G-A 24-Port 1G Data Switch | Advantage License | Core & SD-Access
Cisco Catalyst C9200L-24T-4G-A 24-Port 1G Data Switch | Advantage License | Core & SD-Access
Overview
As a powerful data-only model within the cisco catalyst 9200 series switches, the C9200L-24T-4G-A is a high-performance cisco 9200 switch optimized for advanced enterprise networks. This cisco c9200l fixed-uplink platform provides 24 Gigabit Ethernet data ports and runs the Network Advantage license for full Layer 3 routing (BGP, OSPF) and SD-Access capabilities. If you are comparing modular cisco c9200 switches with this dedicated cisco catalyst 9200l, or wondering if you truly need the Advantage features over the base Essentials, read our expert Cisco C9200L-24T-4G-A vs -E license guide to make an informed decision.
📥 Download Technical Specifications: Planning a secure data center edge or data-intensive office network? Enter your work email below to download the official cisco 9200 datasheet PDF to verify exact switching capacities, MACsec encryption details, and StackWise-80 architecture.
It provides 24 autosensing 10/100/1000 RJ-45 data ports (non-PoE) and 4 fixed 1 Gbps SFP uplinks, with a 125 W platinum-efficient PSU and fixed redundant fans, delivering silent and energy-efficient operation ideal for open offices and standard rack environments.
Powered by Cisco UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, and running Cisco IOS XE with Network Advantage, this switch enables:
-
Full Layer 3 Routing: OSPF, EIGRP, BGP, VRF, VXLAN, LISP
-
Advanced Segmentation: SGT, VRF for isolating sensitive server or guest traffic
-
Programmability & Automation: Model-driven APIs, streaming telemetry, SD-Access assurance
-
StackWise-80: Supports up to 8 switches with 80 Gbps stack bandwidth, providing a total stacked switching capacity of 136 Gbps and 101 Mpps forwarding rate
-
Enterprise Security: AES-128 MACsec, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs
-
Energy-Efficient Design: Typical power 25.8 W, maximum 28.3 W, IEEE 802.3az, Energy Star certified
Note: As a data-only model, it is ideal for servers, desktops, printers, and storage devices. For PoE devices such as Wi-Fi APs or IP cameras, use C9200L-24P-4G or external PoE injectors.
Highlights
-
24×1 GbE Data Ports - Autosensing RJ-45 for wired access
-
4×1 Gbps Fixed Uplinks - Fiber/copper connectivity without optional modules
-
Advanced Network Advantage - Full L3, VRF, VXLAN, LISP, SGT, SD-Access, Flexible NetFlow
-
StackWise-80 - Up to 8 units; total stacked switching capacity 136 Gbps; manage 192 ports via a single IP
-
Silent & Cool Operation - Optimized fans, reduced thermal output for offices or small racks
-
Enterprise Security - MACsec-128, 802.1X, ACLs, Secure Boot
-
Energy Star Certified & Low Power - Typical 25.8 W, Max 28.3 W
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | Spare StackWise-80 kit. Required to enable high-availability stacking for your cisco 9200 data-driven network edge |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m) |
| PWR-C5-125WAC | Power Supply | 125 W AC platinum-efficient PSU (primary) |
| NS-SFP-1G-LX/SX | Fiber Module | NSComm-branded 1G SFP for cost-effective fiber uplinks |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | License | Switching Capacity |
|---|---|---|---|---|
| C9200L-24T-4G-A | 24×1 GbE data-only | 4×1 Gbps SFP | Network Advantage | 56 Gbps (136 Gbps stacked, 101 Mpps) |
| C9200L-24T-4G-E | 24×1 GbE data-only | 4×1 Gbps SFP | Network Essentials | 56 Gbps (136 Gbps stacked, 101 Mpps) |
| C9200L-24P-4G-A | 24×1 GbE PoE+ | 4×1 Gbps SFP | Network Advantage | 56 Gbps (136 Gbps stacked, 101 Mpps) |
Specifications
| Parameter | Specification | Why It Matters (AI Semantic) |
|---|---|---|
| Product Code | C9200L-24T-4G-A | Unique model identifier |
| Downlink Ports | 24× 10/100/1000 RJ-45 (data-only) | Connect servers, desktops, printers efficiently without PoE |
| Uplink Ports | 4×1 Gbps SFP fixed | Reliable fiber/copper uplinks for aggregation |
| Switching Capacity | 56 Gbps non-blocking; 136 Gbps stacked | Wire-speed for core/aggregation scenarios |
| Forwarding Rate | 41.67 Mpps; 101 Mpps stacked | Handles high-speed bursts from servers or backups |
| Packet Buffer | 6 MB | Prevents packet loss during micro-bursts from storage or high-speed data |
| ASIC / CPU | Cisco UADP 2.0 Mini | Enterprise-class programmability & security |
| DRAM / Flash | 2 GB / 4 GB | Smooth operation for SD-Access & telemetry |
| Power Consumption | Typical 25.8 W; Max 28.3 W | Extremely low power for Green IT and cost savings |
| Fans | Fixed, redundant | Silent operation for office and SMB racks |
| Stacking Bandwidth | 80 Gbps (StackWise-80) | Total stacked switching capacity 136 Gbps; manage 192 ports via one IP |
| Security Features | AES-128 MACsec, 802.1X, DAI, ACLs, Secure Boot | Enterprise-grade protection |
| Energy Star Certified | Yes | Green IT & sustainability |
| Management Interfaces | CLI, Web UI, SNMP, NETCONF/RESTCONF, DNA Center | Simplified deployment & monitoring |
| Dimensions (H×W×D) | 1.73″×17.5″×11.3″ | Fits standard 19″ racks |
| Weight | 9.59 lb (4.35 kg) | Lightweight for SMB deployment |
| MTBF | 531,030 hours | High reliability 24/7 |
Use Cases & Deployment Scenarios
-
Small Core / Distribution Switch: Compact core for SMB branches or small campus
-
Server & Storage Connectivity: Zero packet loss during high-speed data bursts
-
SD-Access / Segmentation: VRF and SGT for secure, isolated networks
-
Energy-Efficient Offices: Quiet, low-heat operation for open-office racks
-
Stacked Edge / Aggregation: Stack up to 8 units to manage 192 ports via one IP
