ASR-9006-DC

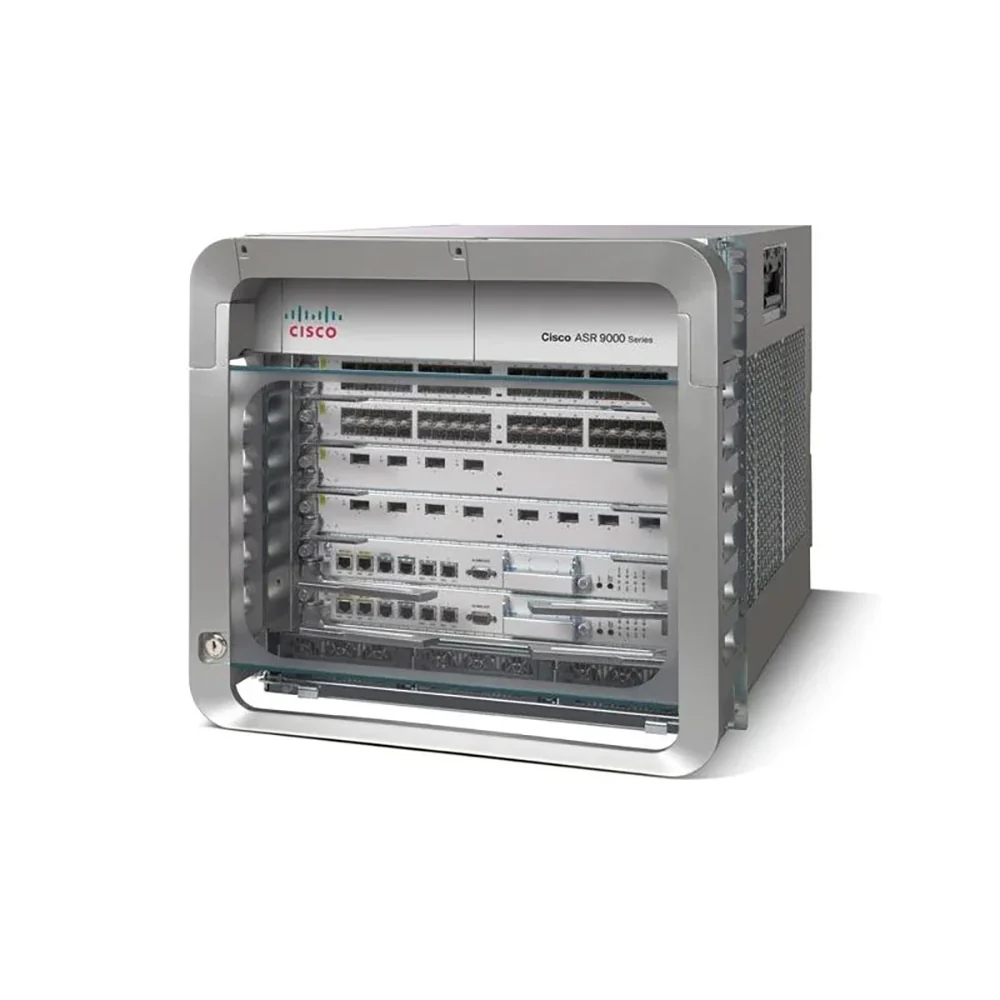

ASR-9006-DC Chassis Routers Overview
The Cisco ASR 9006 DC Chassis (ASR-9006-DC) offers a 10-rack unit (RU) form factor, designed to provide a highly reliable and feature-rich deployment in space-constrained environments. This Cisco WAN Aggregation Network Router delivers the same powerful software functionality and line card options as the ASR 9010, but in a smaller, more compact design. Equipped with dual route switch processors (RSPs) and full commons redundancy, the ASR-9006-DC ensures system and network resiliency, making it ideal for slot-reduced deployments. The chassis supports 4 line card slots and a max capacity of 7 Tbps, making it capable of handling high-throughput demands. It offers DC power modules with 1.5 kW or 2.1 kW, but mixing AC and DC modules is not supported. The 2 fan trays with side-to-side airflow (with optional front-to-back airflow) help optimize cooling. For added reliability, the ASR-9006-DC features 1+1 RSP redundancy and 1+1 fabric redundancy. Powered by IOS XR software, it provides robust network management and service delivery capabilities. To enable full functionality, the ASR-9006-DC requires additional components configured separately. Shop Cisco Routers like the ASR9006-DC for your enterprise WAN aggregation needs, ensuring seamless integration and top-tier performance for your network.
Recommended modules and accessories
Model |
Description |
ASR-9006-FAN |
ASR-9006-FAN Cisco ASR 9006 Series Fan Tray |
PWR-2KW-DC-V2 |
Cisco ASR 9000 Power Module PWR-2KW-DC-V2 2KW DC Power Module Version 2 for ASR-9006 & ASR-9010 Spare |
A9K-RSP440-TR |
Cisco ASR 9000 Route Switch Processor A9K-RSP440-TR ASR9K Route Switch Processor with 440G/slot Fabric and 6GB |
A9K-RSP440-SE |
Cisco ASR 9000 Route Switch Processor A9K-RSP440-SE ASR9K Route Switch Processor with 440G/slot Fabric and 12GB |
A9K-SIP-700 |
Cisco ASR 9000 Interface A9K-SIP-700 Cisco ASR 9000 Series SPA Interface Processor-700 |
A9K-24X10GE-SE |
Cisco ASR 9000 Series Router Ethernet Linecard A9K-24X10GE-SE ASR 9000 24-port 10GE, Service Edge Optimized LC (spare) |
A9K-2X100GE-SE |
Cisco ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-SE ASR 9000 2-port 100GE, Service Edge Optimized LC (spare) |
A9K-2X100GE-TR |
Cisco ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-TR ASR 9000 2-port 100GE, Packet Transport Optimized LC (spare) |
Compare to Similar Items
Model |
ASR-9006-DC |
ASR-9006-DC-V2 |
| Type | Cisco ASR-9006 DC Chassis | Cisco ASR-9006 DC Chassis PEM Version 2 |
| Slots | 4 Line Cards 2 RSPs |
4 Line Cards 2 RSPs |
| Rack Size | 10 RU | 10 RU |
Specifications
ASR-9006-DC Specifications |
|
| Physical specifications | Height: 17.50 in. (444.5 mm) (10 RU) Width: 17.38 in. (441.45 mm) Depth: · With doors: 29.05 in. (737.9 mm) · Without doors: 29.05 in. (737.9 mm) Weight: · 89.55 lb (40.7 kg) (chassis with PEM) 150 lb (65.91 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 FAN trays, PEMs |
| Slot orientation | Horizontal |
| Cisco ASR 9000 Series RSP | Dual redundant RSPs with integrated fabric in 2 slots |
| Cisco ASR 9000 Series line cards | 4 line-card slots |
| “Commons” components | 2 RSPs2 fan trays1 PEM (either DC or AC)1 fan filter |
| Reliability and availability | Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
| Rack mounting | 19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation |
| Cabinet mounting | Yes Note: Doors not recommended in enclosed cabinets |
| Wall mounting | No |
| Airflow | Right-to-back, Front-to-back with baffle |
| Fabric | One per RSP: · Active/active nonblocking operation mode in dual-RSP redundant configuration · Fully redundant in dual-RSP redundant configuration · Built-in service-intelligence and traffic-prioritization capability |
| Thermal | Two fan trays: · 6 high-efficiency fans per tray · Variable-speed fans for optimal thermal performance · No single point of failure |
| Modularity | Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: · 3 kW AC power module · 2.1 kW DC power module Note: Mixing of AC and DC modules is not supported |
| Redundancy | · AC: N+N redundancy · DC: N+1 redundancy · Power module redundancy · A/B Feed redundancy |
| Power zones | No power zone restrictions Fully load-sharing power infrastructure |
| Power input | Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
| Power-module airflow | Front-to-back |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
|
Operating temperature (short-term) |
ASR 9006: 23 to 131ºF (-5 to 55ºC) ASR 9010: 23 to 122ºF (-5 to 50ºC) |
|
Operating humidity (nominal) (relative humidity) |
5 to 90% |
| Storage temperature | -40 to 158ºF (-40 to 70ºC) |
| Storage (relative humidity) | 5 to 93% |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
|
Network Equipment Building Standards (NEBS) |
Cisco ASR 9006 is designed to meet: · SR-3580: NEBS Criteria Levels (Level 3) · GR-1089-CORE: NEBS EMC and Safety · GR-63-CORE: NEBS Physical Protection · VZ.TPR.9205: Verizon TEEER |
| ETSI standards | Cisco ASR 9006 is designed to meet: · EN300 386: Telecommunications Network Equipment (EMC) · ETSI 300 019 Storage Class 1.1 · ETSI 300 019 Transportation Class 2.3 · ETSI 300 019 Stationary Use Class 3.1 |
| EMC standards emission | Cisco ASR 9006 is designed to meet: · FCC Class 47CFR15 A· ICES 003 Class A · AS/NZS CISRP22 Class A· CISPR 22 (EN55022) Class A · VCCI Class A· BSMI Class A · IEC/EN 61000-3-12: Power Line Harmonics · IEC/EN 61000-3-11: Voltage Fluctuations and Flicker · EN55022: Information Technology Equipment (Emissions) · EN 50121-4: Railway EMC |
| EMC standards immunity | Cisco ASR 9006 is designed to meet: · IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) · IEC/EN-61000-4-3: Radiated Immunity (10V/m) · IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) · IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) · IEC/EN-61000-4-5: Signal Surge Ports (1kV) · IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) · IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) · IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) · IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations · EN55024: Information Technology Equipment (Immunity) · EN50082-1/EN-61000-6-1: Generic Immunity Standard · EN 50121-4: Railway EMC |
| Safety | Cisco ASR 9006 is designed to meet:· UL/CSA/IEC/EN 60950-1· IEC/EN 60825 Laser Safety· ACA TS001· AS/NZS 60950· FDA Code of Federal Regulations Laser Safety |
