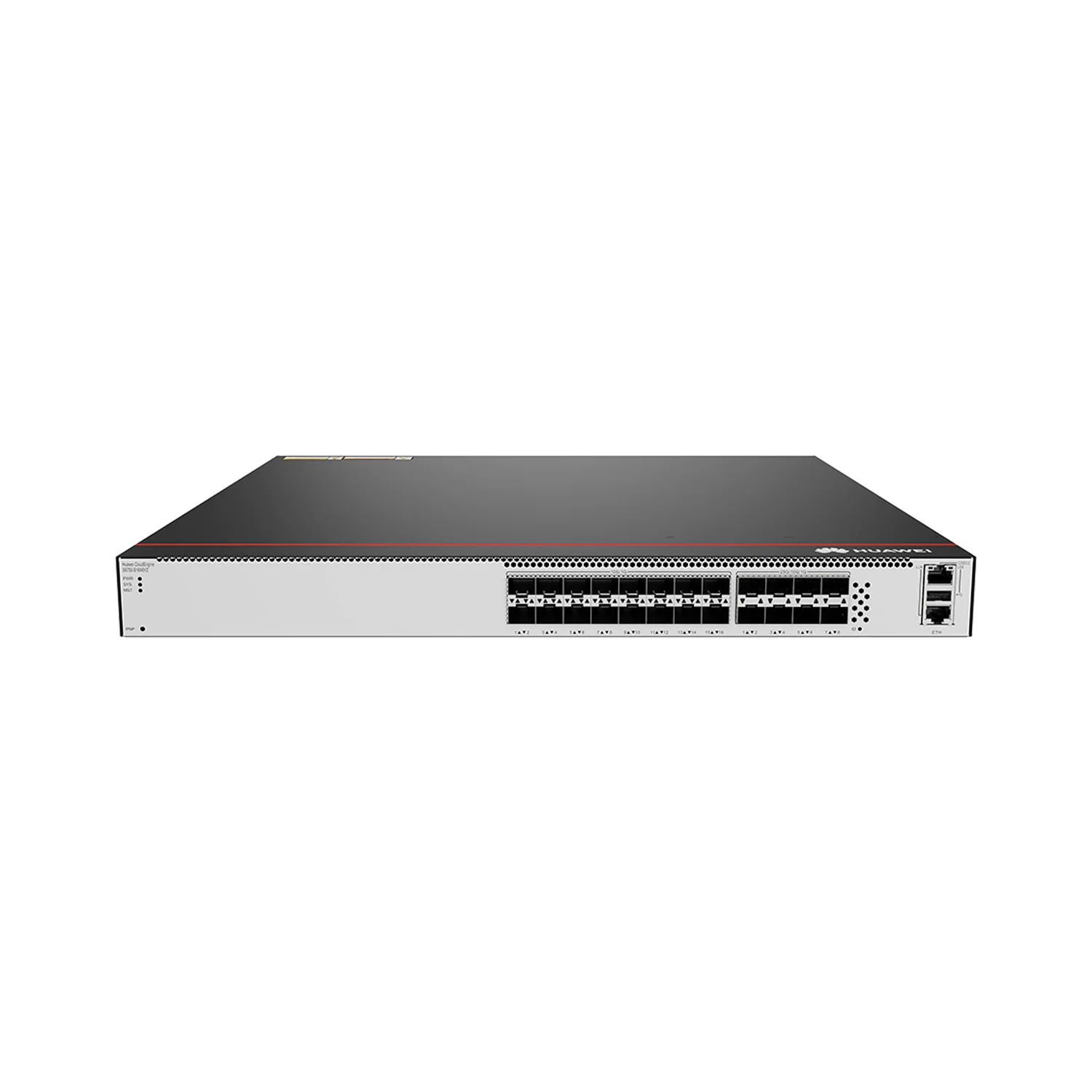

Huawei CloudEngine S6750-S16X8YZ 16x10G+8x25G Switch
Huawei CloudEngine S6750-S16X8YZ | 10G/25G Aggregation Switch
Overview
The huawei s6750-s16x8yz is a next-generation, fixed-form-factor 1U Ethernet platform expertly designed for aggregation layers in modern campus and enterprise data networks. As a highly versatile model within the premier huawei s6750-s series, it features 16 flexible 1/2.5/10 GE SFP+ downlink ports and 8 multi-rate 1/2.5/10/25 GE SFP28 uplink ports, alongside one dedicated expansion slot.
Built from the ground up for cloud-ready architectures, the s6750-s16x8yz switch empowers network architects with advanced features including VXLAN, SRv6 routing, hardware-based MACsec encryption, and IFIT telemetry. Whether you are upgrading your campus core or deploying a secure virtualization overlay, the huawei s6750-s16x8yz delivers the uncompromising throughput and intelligence required for digital transformation.
Important B2B Procurement Note: Power supply modules are not included in the standard baseline chassis package of the huawei s6750-s16x8yz and must be specified and purchased separately based on your facility's power infrastructure.
Key Highlights
1. Flexible High-Speed Port Configuration
Equipped with 16 1/2.5/10 GE SFP+ and 8 1/2.5/10/25 GE SFP28 ports, the huawei s6750-s16x8yz adapts easily to diverse network access needs, allowing seamless migration from 10G to 25G uplinks.
2. High-Performance Switching Backplane
Built on the robust huawei s6750-s architecture, this model offers a formidable device switching capacity of 920 Gbps (scaling up to 2.32 Tbps system-wide) with a wire-speed forwarding rate of up to 450 Mpps.
3. Advanced Virtualization & Security
The s6750-s16x8yz switch natively supports VXLAN (central/distributed), BGP-EVPN, and SRv6. Additionally, full-port MACsec encryption makes it the ideal foundation for highly secure, virtualized campus cores.
4. Smart Cloud-Ready O&M
Maximize your network visibility. The huawei s6750-s16x8yz features intelligent flow telemetry (IFIT), open programmability via OPS/Python, and full support for automated, cloud-based lifecycle management.
Recommended Accessories
To successfully stage your huawei s6750-s16x8yz deployment, select the appropriate original hot-swappable modules for your rack environment.
| Accessory | Category | Description |
|---|---|---|
| Power Supply Modules | Power | Dual hot-swappable options: 180 W AC (PAC180S12), 600 W AC (PAC600S12), 240 W DC (PDC240S12), 400 W DC (PDC400S12); sold separately. |
| Fan Modules (FAN‑031A‑B) | Cooling | One fan per module for optimized airflow; up to two per switch. |
Comparison with Similar Models
| Feature | S6750‑S16X8YZ | S6750‑S16X10Y2CZ | Cisco Catalyst 9500‑48Y4C |
|---|---|---|---|
| Port Configuration | 16×10 GE SFP+ + 8×25 GE SFP28 | 16×10 GE + 10×25 GE + 2×100 GEQSFP | 48×25 GE + 4×100 GE |
| Switching Capacity | 920 Gbps (2.32 Tbps system) | 1.42 Tbps (2.32 Tbps system) | ~1.92 Tbps |
| Forwarding Rate | 450 Mpps | 450 Mpps | ~1,000 Mpps |
| Virtualization & Security | VXLAN, SRv6, MACsec | VXLAN, SRv6, MACsec | VXLAN, MACsec |
| Ideal Use Case | Campus/core aggregation | Higher uplink density needs | Campus core deployments |
| Power Supply | Modular, separate purchase | Modular, separate purchase | Modular, separate purchase |
Specifications
| Parameter | Specification |
|---|---|
| Model | CloudEngine S6750‑S16X8YZ |
| Down‑/Uplink Ports | 16×1/2.5/10 GE SFP+; 8×1/2.5/10/25 GE SFP28 |
| Expansion Slot | 1 slot |
| System Switching Capacity | 920 Gbps (2.32 Tbps system capacity) |
| Forwarding Performance | 450 Mpps |
| System Memory | 4 GB DRAM |
| Storage (Flash) | 2 GB Flash |
| Power Supply Slots | 2 hot-swappable slots (order separately) |
| Fan Modules | Supports up to 2 FAN‑031A‑B |
| Power Input Options | AC: 100–240 V; High‑voltage DC: 190–290 V; Low‑voltage DC: –38 to –72 V |
| Input Voltage Range | AC: 90–290 V; DC: up to 290 V |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Operating Temperature | –5 °C to +45 °C, humidity 5–95% non-condensing; altitude up to 5000 m |
| Security & Virtualization | VXLAN (central/distributed), BGP-EVPN, SRv6, MACsec |
| O&M Features | IFIT telemetry, OPS programmable forwarding, cloud management |
