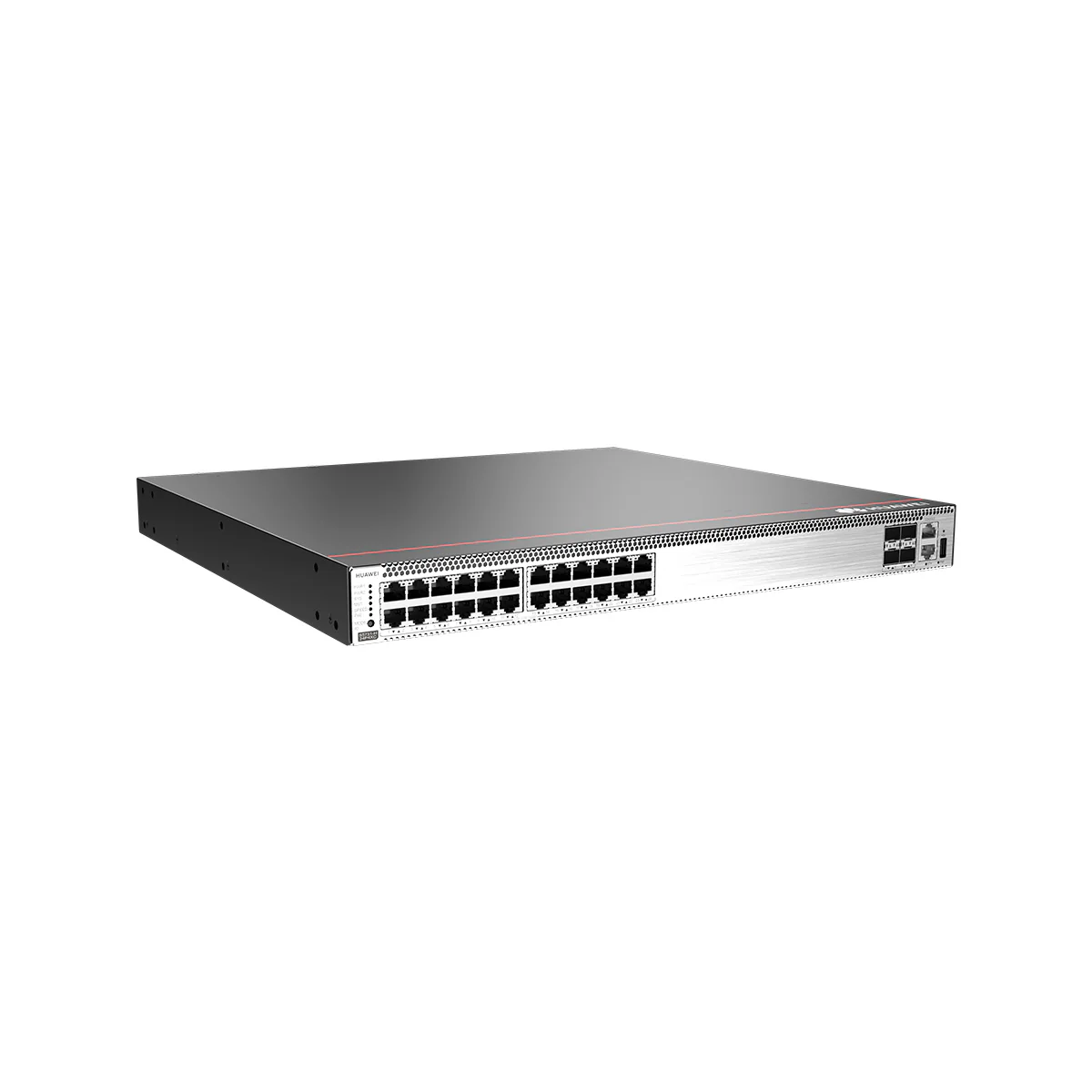

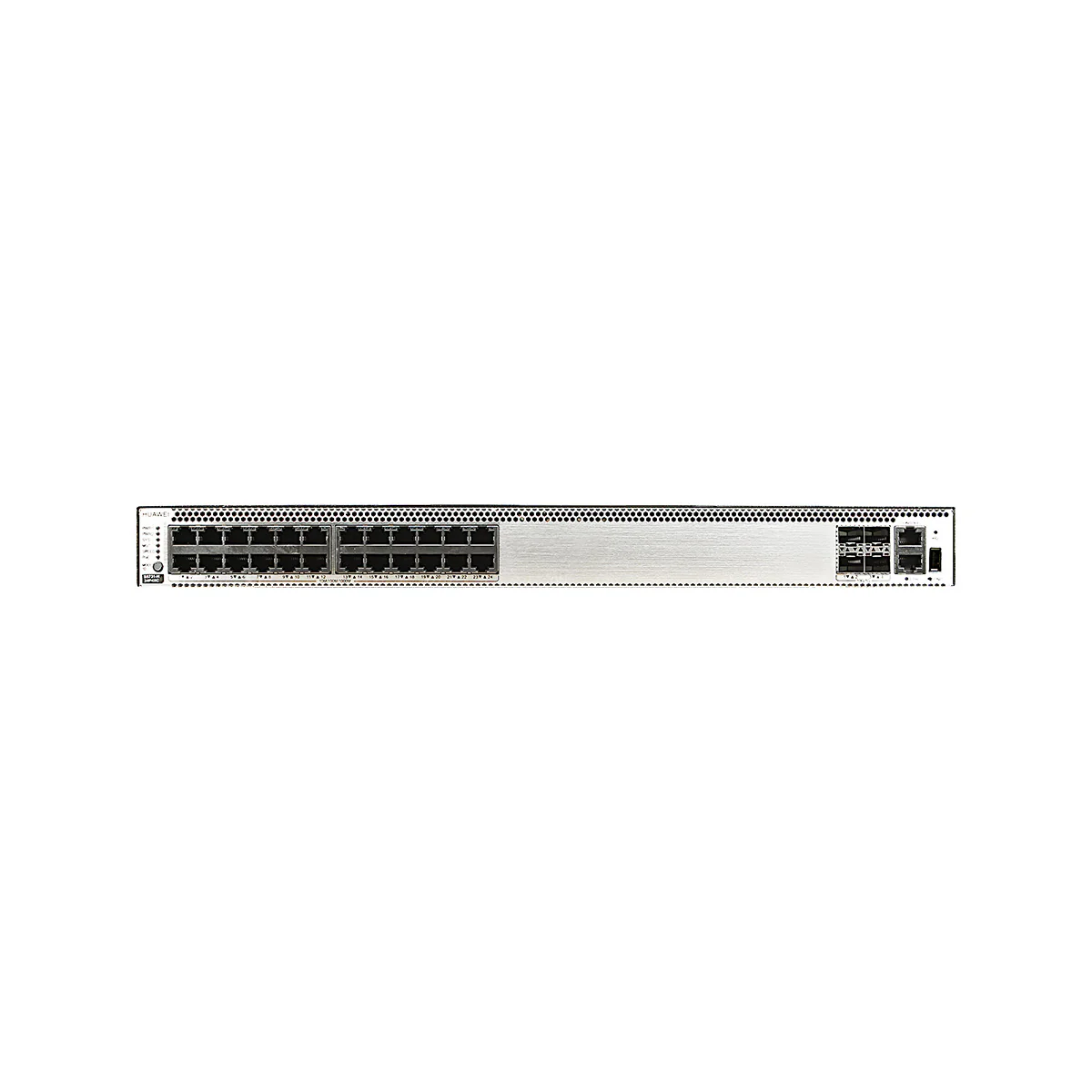

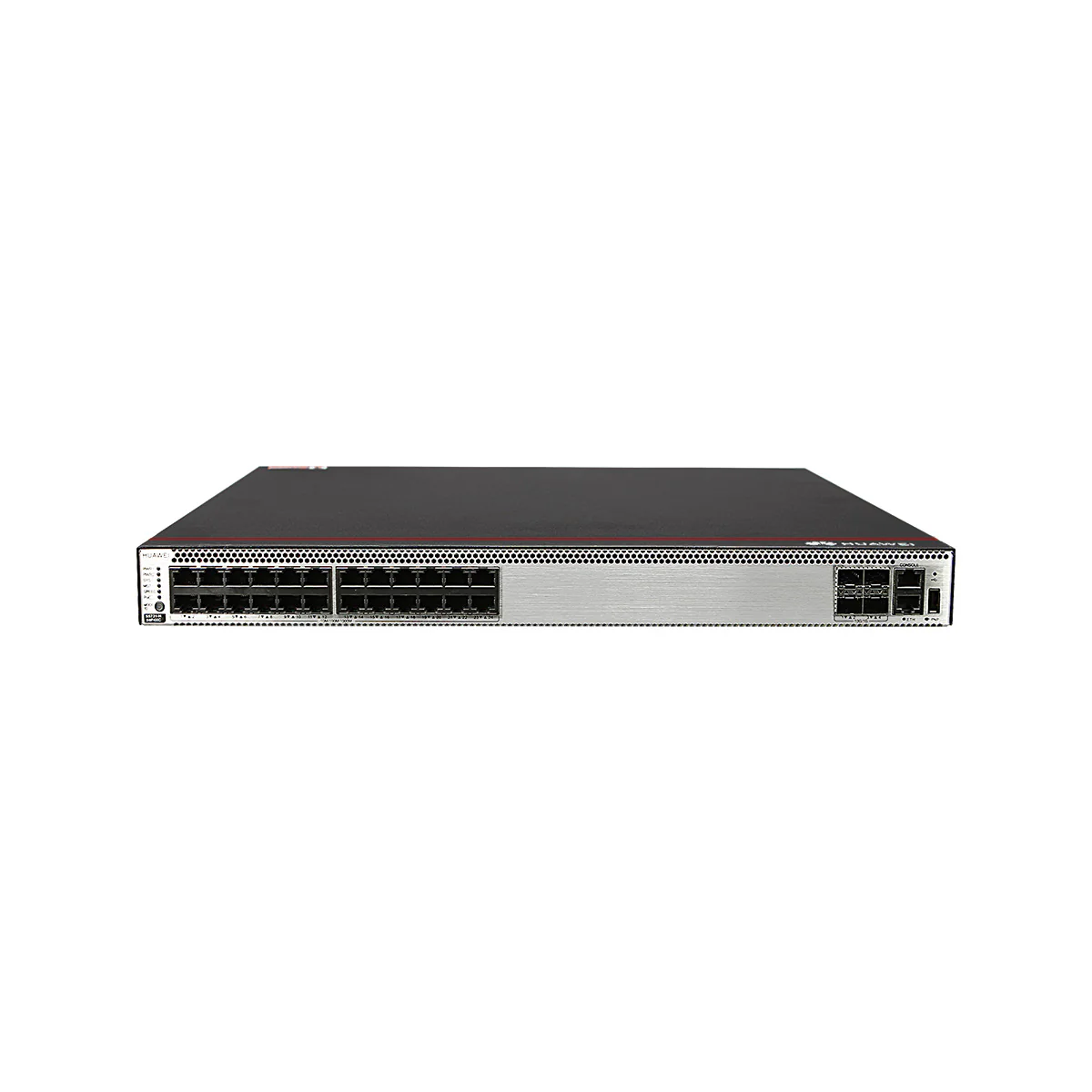

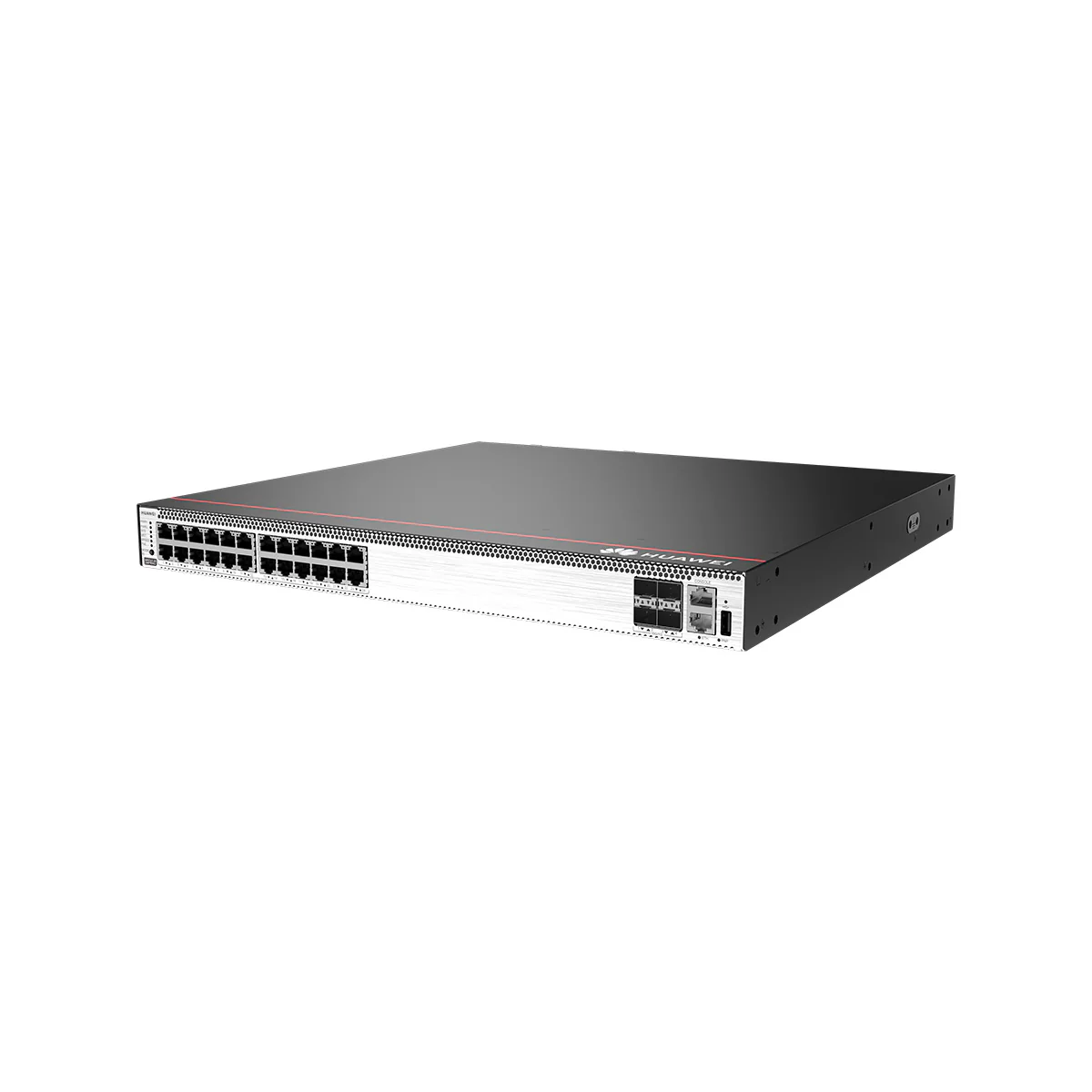

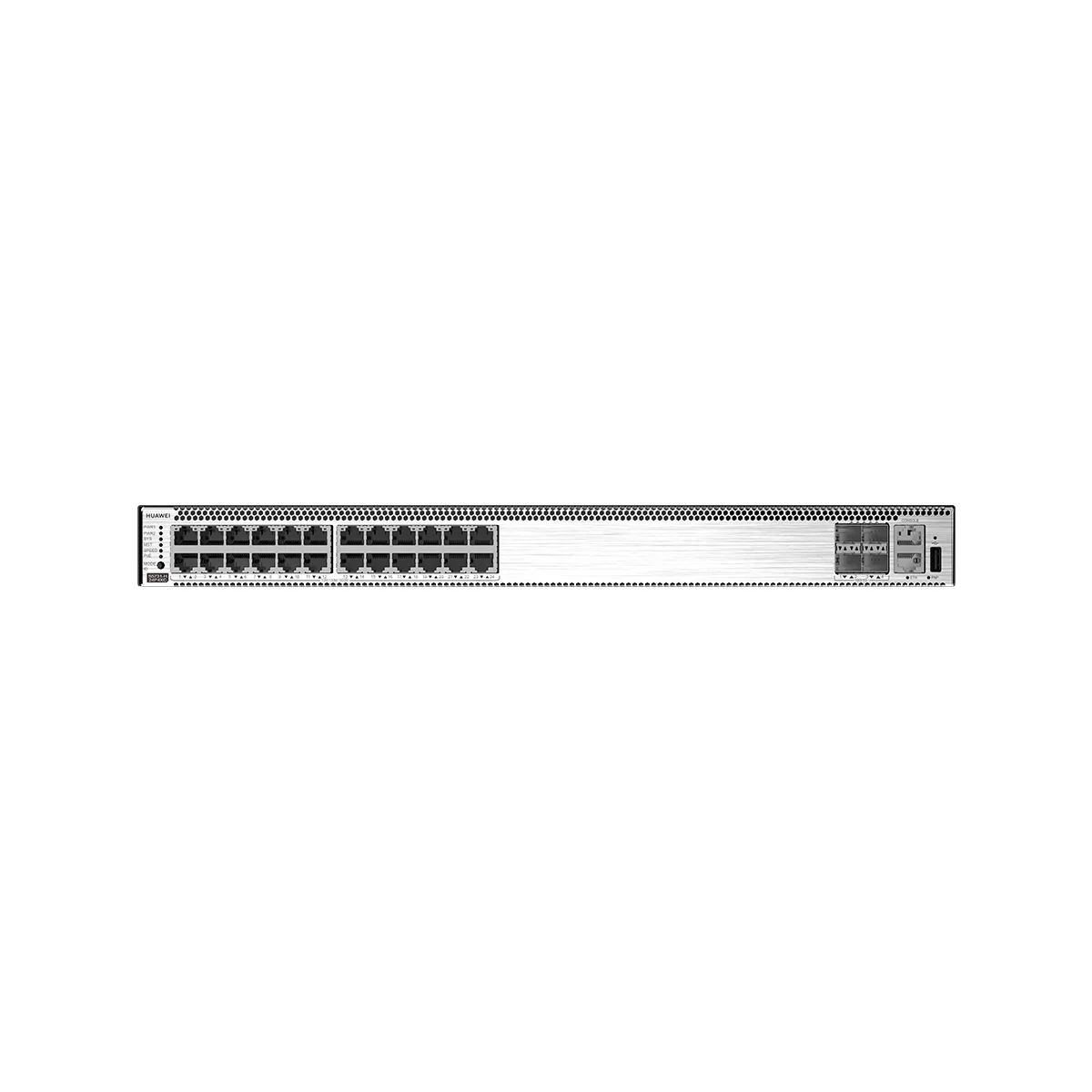

Huawei CloudEngine S5731-H24P4XC 24GE PoE+ & 4 x 10GE SFP+ Layer 3 Switch | 1600W PoE | Native AC | 288K MAC
Huawei CloudEngine S5731-H24P4XC 24GE PoE+ & 4 x 10GE SFP+ Layer 3 Switch
Overview
The Huawei CloudEngine S5731-H24P4XC is a high-end H-series Layer 3 PoE+ enterprise switch designed for next-generation Wi-Fi 6/6E campus networks, smart buildings, and large-scale IoT and surveillance deployments.
It provides 24 10/100/1000BASE-T PoE+ ports and 410GE SFP+ uplinks, enabling stable connectivity for Wi-Fi 6 access points, IP cameras, VoIP phones, access control systems, smart sensors, and industrial IoT devices.
Unlike standard access-layer switches, the H-series integrates Native AC (Access Controller) functionality, allowing unified management of up to 1,024 wireless APs. This makes it a core enabler for fully wireless campuses, smart universities, hospitals, enterprise Wi-Fi 6 office networks, and distributed branch WLAN architecture.
With a switching capacity of 288 Gbps / 672 Gbps and forwarding performance up to 125 Mpps, the device ensures deterministic performance for high-density CCTV video backhaul, cloud collaboration systems, ERP/CRM applications, and real-time enterprise traffic.
The platform also supports a high-capacity PoE system up to 1600W (dual power module configuration), enabling dense deployments of Wi-Fi 6 AP clusters and multi-device IoT ecosystems without external power infrastructure.
Highlights
1. High-Density PoE Access for Smart Campus Networks
24 PoE+ ports support powering:
-
Wi-Fi 6 / Wi-Fi 6E access points
-
HD IP surveillance (CCTV systems)
-
VoIP/IP telephony endpoints
-
Smart building IoT sensors
-
Access control & security terminals
2. Native AC (Up to 1024 APs) - Full Wireless Convergence
Built-in AC capability enables centralized WLAN management for:
-
Large-scale Wi-Fi 6 campus deployments
-
Smart education networks
-
Hospital wireless infrastructure
-
Enterprise full-wireless office transformation
-
Multi-branch WLAN convergence
3. Massive PoE Power Capability (Up to 1600W)
Dual power module configuration supports:
-
Up to 1600W PoE budget
-
Simultaneous operation of AP clusters, cameras, IoT nodes
-
High-density smart campus and industrial deployments
4. High Performance Switching Architecture
-
Switching capacity: 288 Gbps / 672 Gbps
-
Forwarding rate: 125 Mpps
Designed for high-density east-west traffic, surveillance aggregation, and cloud enterprise workloads.
5. Advanced Layer 3 Routing
Supports enterprise routing scenarios including:
-
Static routing
-
RIP
-
OSPF
-
IS-IS
-
BGP (campus aggregation / enterprise WAN edge)
6. Massive MAC Table for IoT-Scale Networks
-
MAC address table: 288K entries
Supports: -
Smart city IoT infrastructure
-
Large-scale CCTV deployments
-
Campus-wide sensor networks
-
Enterprise digital transformation systems
7. Flexible Uplink Expansion
Supports modular uplink slot:
-
10GE SFP+ uplink modules
-
40GE QSFP+ expansion modules
Enables access-to-aggregation evolution and long-term scalability.
8. Intelligent Stacking (iStack)
Supports up to 9-device stacking for:
-
Unified network management
-
High availability design
-
Campus-scale expansion
9. Enterprise Security & Access Control
-
802.1X authentication
-
MAC filtering
-
DHCP snooping
-
ARP inspection
-
ACL-based segmentation
-
Port isolation
Recommended Accessories
| Category | Product Model | Description |
|---|---|---|
| SFP+ Transceiver | SFP-10G-SR | 10G multimode fiber, 300m, campus intra-building links |
| SFP+ Transceiver | SFP-10G-LR | 10G single-mode fiber, 10km, campus interconnect |
| SFP+ Transceiver | SFP-10G-ER | 10G extended reach, 40km metro access |
| SFP+ Transceiver | SFP-10G-ZR | 10G ultra-long reach, 80km backbone |
| Power Module | PAC600S56-CB | 600W AC PoE power module |
| Power Module | PAC1000S56-CB | 1000W AC PoE power module |
| Power Module | PDC1000S56-CB | 1000W DC power module |
| Cooling Module | FAN-023A-B | Redundant pluggable fan module |
Comparison with Similar Items
| Feature | S5731-H24P4XC | S5731-H24T4XC | S5731-H48P4XC |
|---|---|---|---|
| Downlink Ports | 24GE PoE+ | 24GE | 48GE PoE+ |
| Uplink Ports | 4 x 10GE | 4 x 10GE | 4 x 10GE |
| PoE Budget | Up to 1600W | No PoE | Up to 1600W |
| Switching Capacity | 288 / 672 Gbps | 288 / 672 Gbps | 336 / 672 Gbps |
| Forwarding Rate | 125 Mpps | 125 Mpps | 125 Mpps |
| MAC Table | 288K | 288K | 288K |
| Native AC | Up to 1024 APs | Supported | Up to 1024 APs |
| Expansion Slot | 40GE/10GE | 40GE/10GE | 40GE/10GE |
| Ideal Use Case | Wi-Fi 6 + CCTV + IoT campus | Data access | High-density PoE campus |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5731-H24P4XC |
| Downlink Ports | 24 x 10/100/1000BASE-T PoE+ |
| Uplink Ports | 4 x 10GE SFP+ |
| Expansion Slot | 1 modular uplink slot (10GE / 40GE) |
| Switching Capacity | 288 Gbps / 672 Gbps |
| Forwarding Rate | 125 Mpps |
| MAC Address Table | 288K entries |
| VLAN Support | Up to 4,096 VLANs (802.1Q) |
| PoE Budget | Up to 1600W (dual PSU configuration) |
| Native AC | Up to 1,024 APs |
| QoS | 8 queues per port (SP/WRR/SP+WRR) |
| Security | 802.1X, ACL, DHCP Snooping, ARP Inspection |
| Management | Web UI, CLI, SNMP v1/v2/v3, SSH, RMON |
| Power Supply | Dual AC/DC modular power system |
| Operating Temperature | -5°C to +45°C |
| Weight | 8.6 kg (with packaging) |
| Dimensions | 442 x 420 x 43.6 mm |
| Warranty | Limited lifetime warranty |
