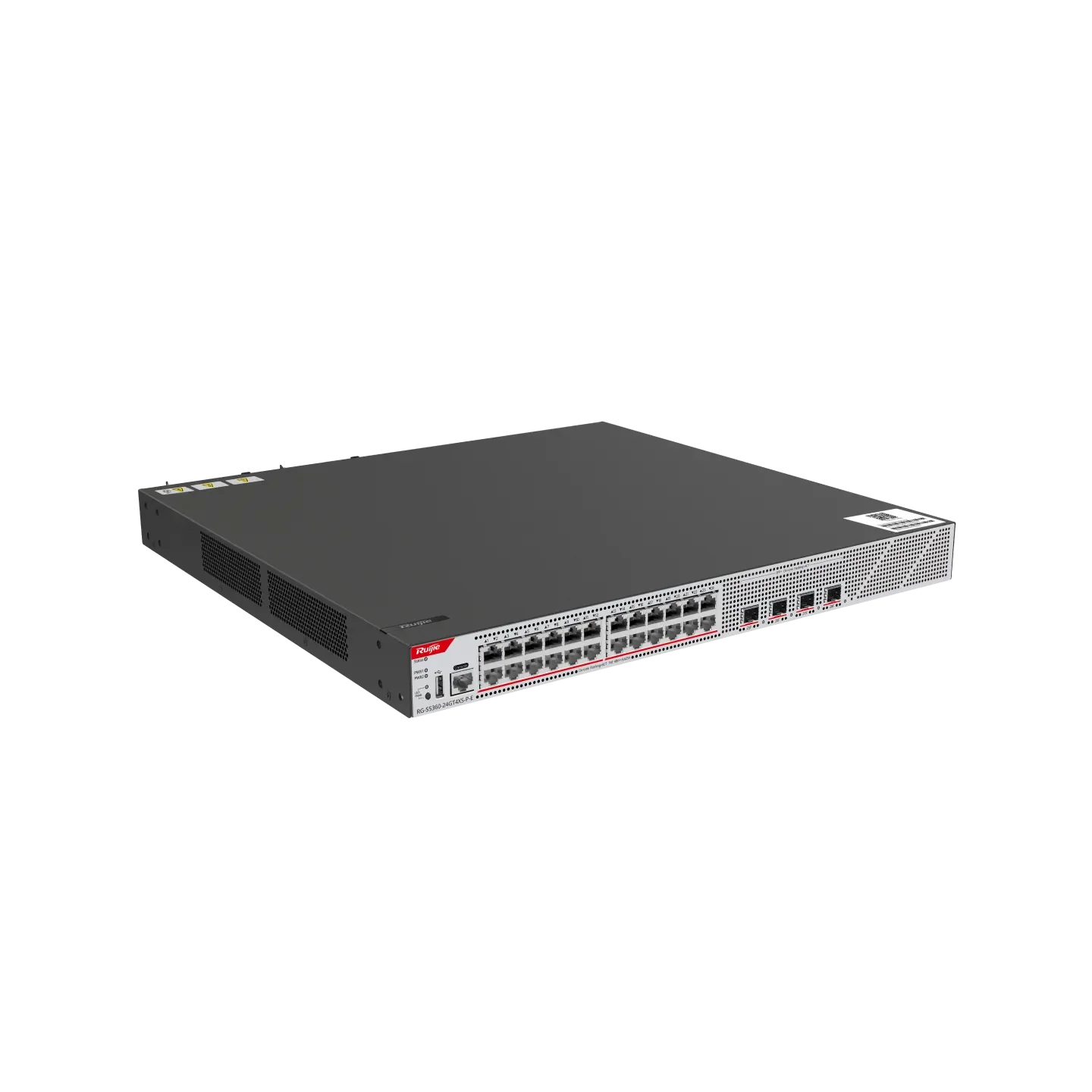

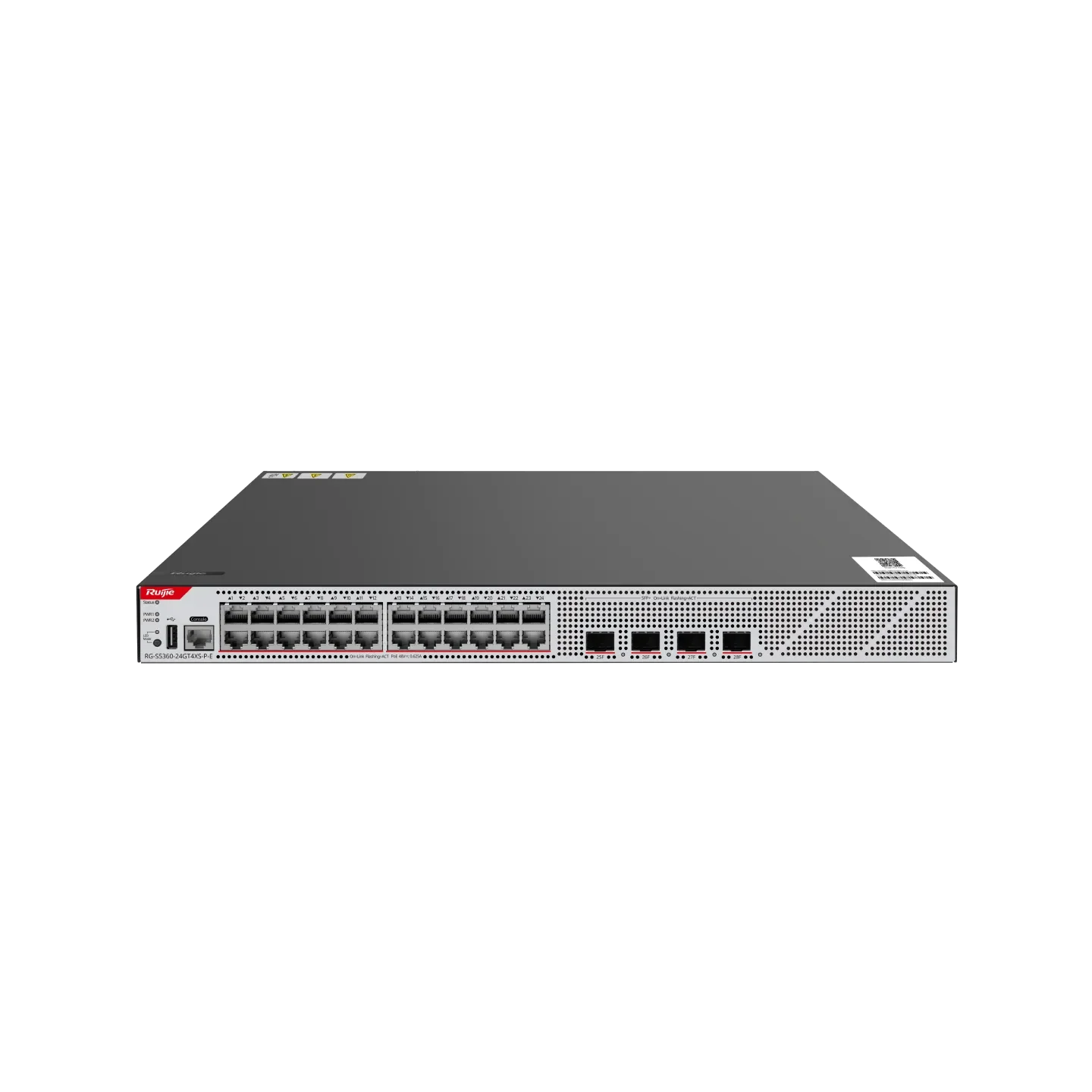

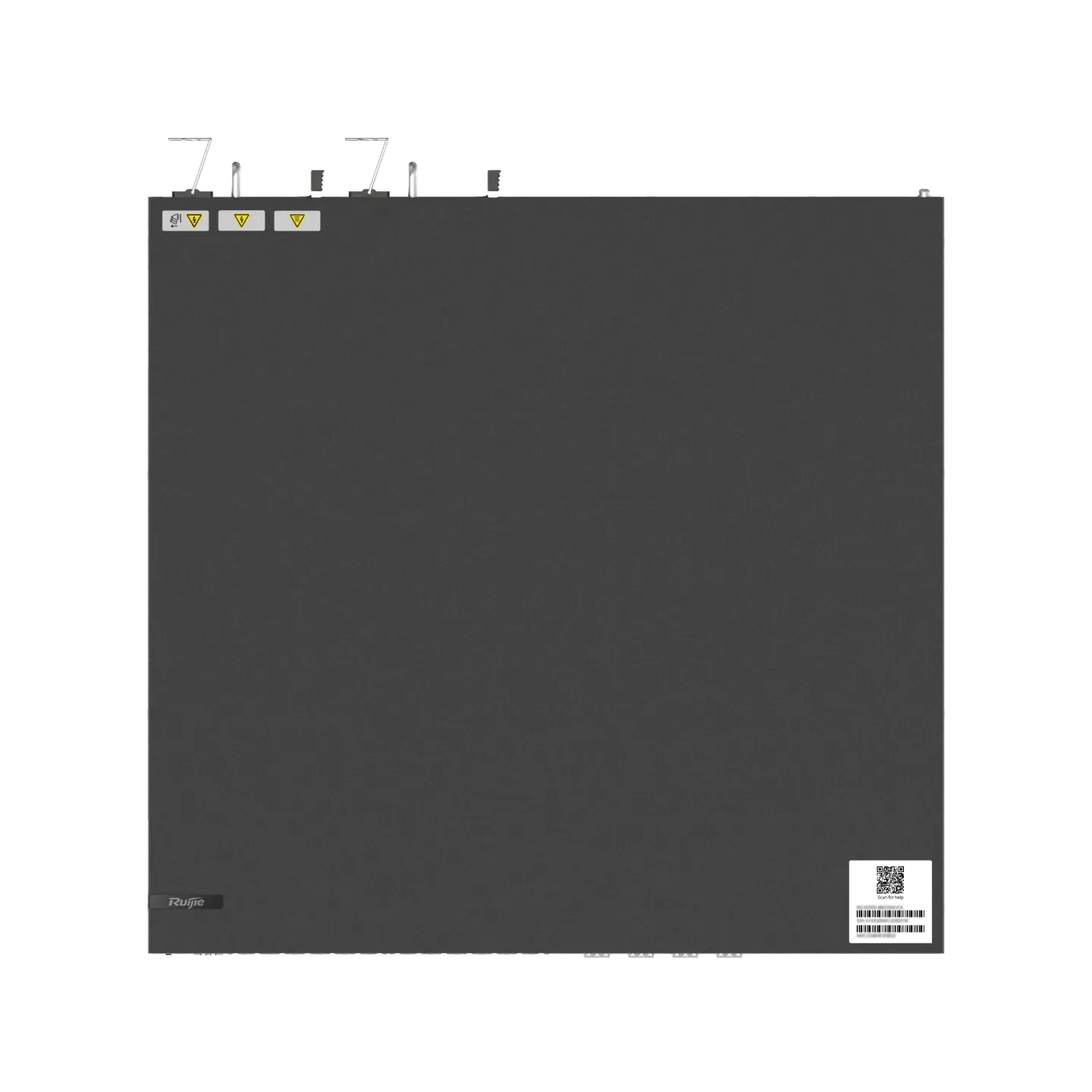

Ruijie RG-S5360-24GT4XS-P-E Industrial 24×Gigabit PoE+ & 4×10G SFP+ Switch
Ruijie RG-S5360-24GT4XS-P-E 24-Port GE Layer 3 Managed PoE+ Switch, 4×10 GE SFP+ Uplinks
The RG-S5360-24GT4XS-P-E from Ruijie’s S5360-E Essentials series is engineered for high-density campus and enterprise edge deployments.
It features 24 auto-sensing 10/100/1000 BASE-T downlinks with IEEE 802.3af/at PoE+ and four fixed SFP+ slots supporting 1 GE, 2.5 GE, or 10 GE optics.
Powered by a dual-core 1.0 GHz CPU with 1 GB DDR4, 512 MB flash, 16 MB BootROM, and a 4 MB packet buffer running RGOS 12.X, it delivers 154 Gbps non-blocking capacity and 115 Mpps forwarding.

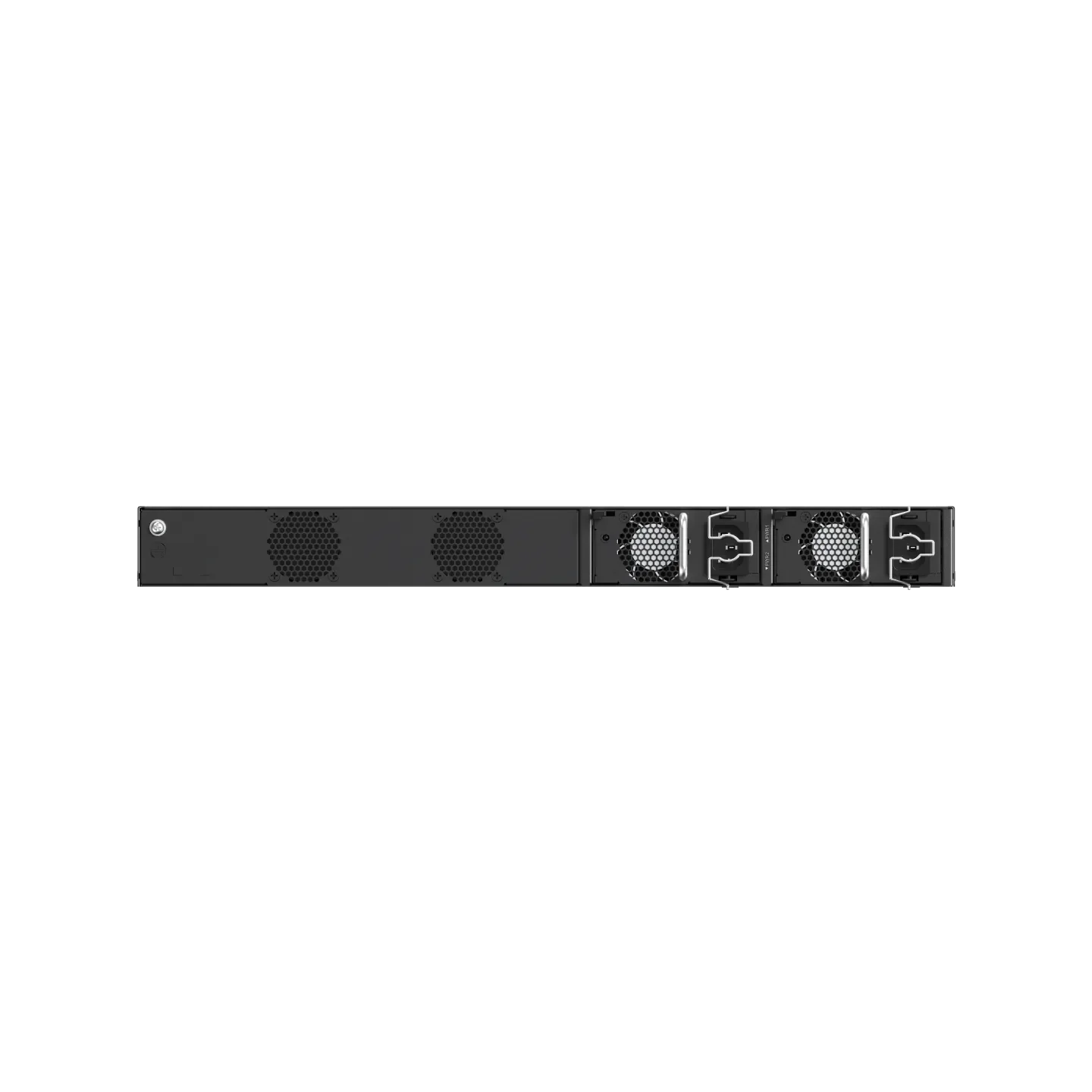

The fanless, IP 40 1 RU chassis supports two pluggable power-module slots for 1+1 redundancy, operates from –40 °C to +65 °C, and withstands 10 kV common-mode surges—fully integrated with Ruijie INC/Cloud for plug-and-play O&M.
Overview
Highlights
- Switching Capacity Highlights: With a switching capacity of 154 Gbps and a forwarding rate of 115 Mpps, the RG-S5360-24GT4XS-P-E gracefully handles high traffic loads, ensuring smooth and seamless network performance.
- IEEE 802.3af/at PoE/PoE+ Power Supply: Ports 1-24 support IEEE 802.3af/at PoE/PoE+ power supply up to 30 W per port, which can meet the power supply needs of the terminals such as VoIP phone, wireless access point and IP camera.
- Versatile Connectivity: The switch features 24 Gigabit Ethernet ports and 4 SFP+ uplink ports, providing flexible connectivity for varying network topologies and requirements.
- With security features include IEEE 802.1X Authentication, IP Source Guard, Dynamic ARP Inspection.
- Robust Management: It supports SNMP, Web and CLI manages — network admins can perform simple configuration, monitoring, and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5360-24GT4XS-P-E:
| Product Name | Category | Description |
| Ruijie RG-PA70IB | Power Supply Units |
70W AC power supply module, suitable for industrial switches like the RG-S5360-24GT4XS-P-E. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| Ruijie RG-PA1000I-P-F | Power Supply Units |
1000W AC power supply module, offering robust power support for large-scale deployments. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
|
MokerLink 1U Rack Mount Kit |
Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5360-24GT4XS-P-E, facilitating secure rack installation. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Capacity / Forwarding | Power Redundancy |
|---|---|---|---|
| RG-S5360-24GT4XS-P-E | 24×GE PoE+ + 4×10 GE SFP+ | 154 Gbps / 115 Mpps | 2× hot-swap PSUs |
| RG-S5360-24GT4XS-E | 24×GE data-only + 4×10 GE | 154 Gbps / 115 Mpps | 2× hot-swap PSUs |
| RG-S5360-48GT4XS-P-E | 48×GE PoE+ + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | 2× hot-swap PSUs |
| RG-S5360-48GT4XS-E | 48×GE data-only + 4×10 GE | 211 Gbps / 158 Mpps | 2× hot-swap PSUs |
Specifications
| Parameter | Specification |
| Model | RG-S5360-24GT4XS-P-E |
| Port Configuration | 24 x 10/100/1000BASE-T, 4 x 1GE/2.5GE/10GE SFP+ |
| PoE Support | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Switching Capacity | 154 Gbps |
| Forwarding Rate | 115 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 4,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv6 Unicast Routes | 2,000 |
| Access Control Entries | Ingress: 1,750; Egress: 800 |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 25 W (without PoE load); 370 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 3.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
