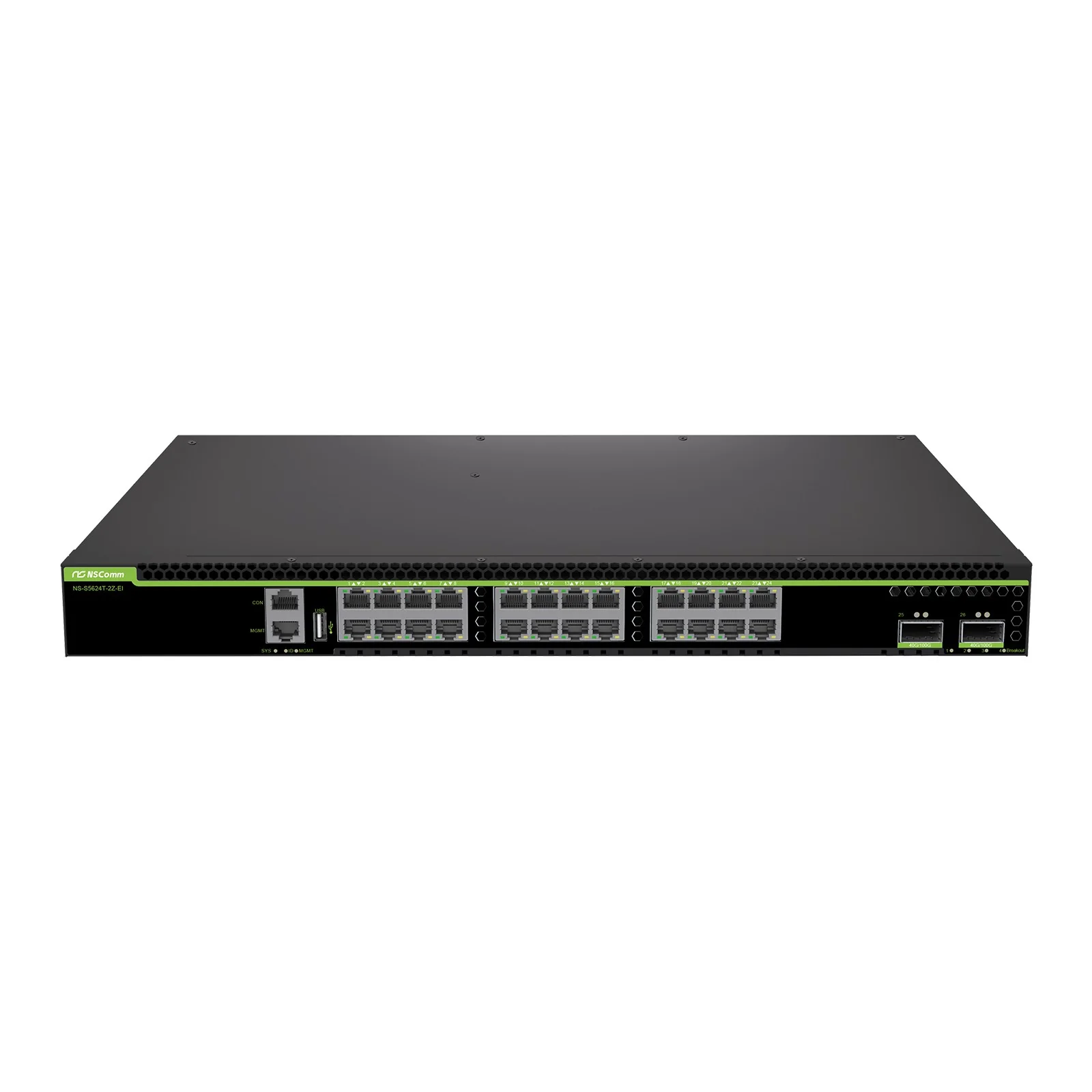

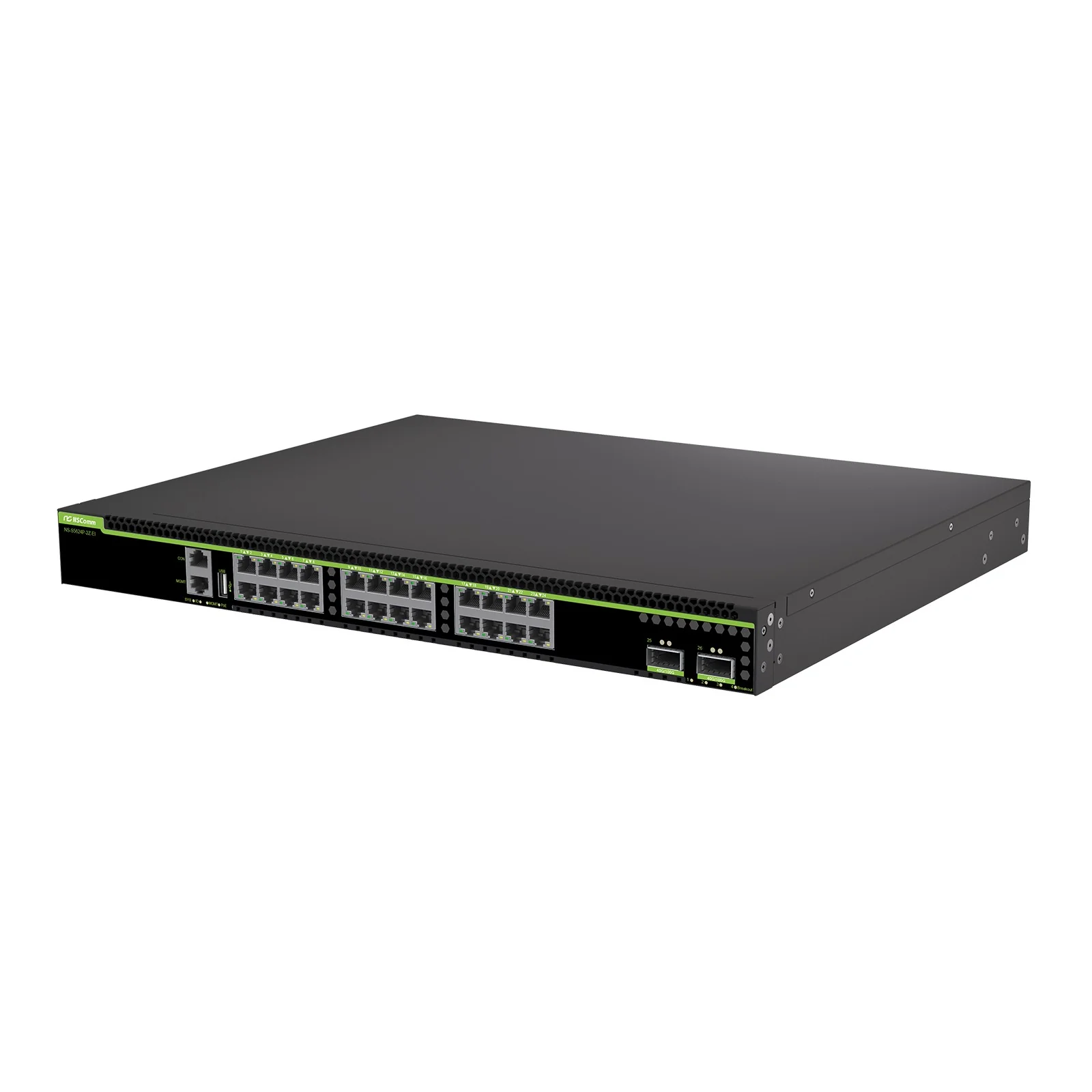

NSComm S5624T-2Z-EI 24 x 100M/1G/2.5G/5G/10G Base-T L3 Managed Switch
NSComm S5624T-2Z-EI 24 x 100M/1G/2.5G/5G/10G Base-T L3 Managed Switch
Overview
The NSComm S5624T-2Z-EI is a high-performance Layer 3 managed switch for high-speed multigigabit enterprise and HCI access. It combines 24 x 100M/1G/2.5G/5G/10G Base-T with 2 x 100GE QSFP28 and delivers 880 Gbps switching capacity and 1309.44 Mpps forwarding.
Core Highlights
- Ports: 24 x 100M/1G/2.5G/5G/10G Base-T
- Uplinks: 2 x 100GE QSFP28
- PoE: None
- Protocols: IPv6, OSPF, BGP, PIM, MPLS, VXLAN, MACsec, PTP, and ERPS

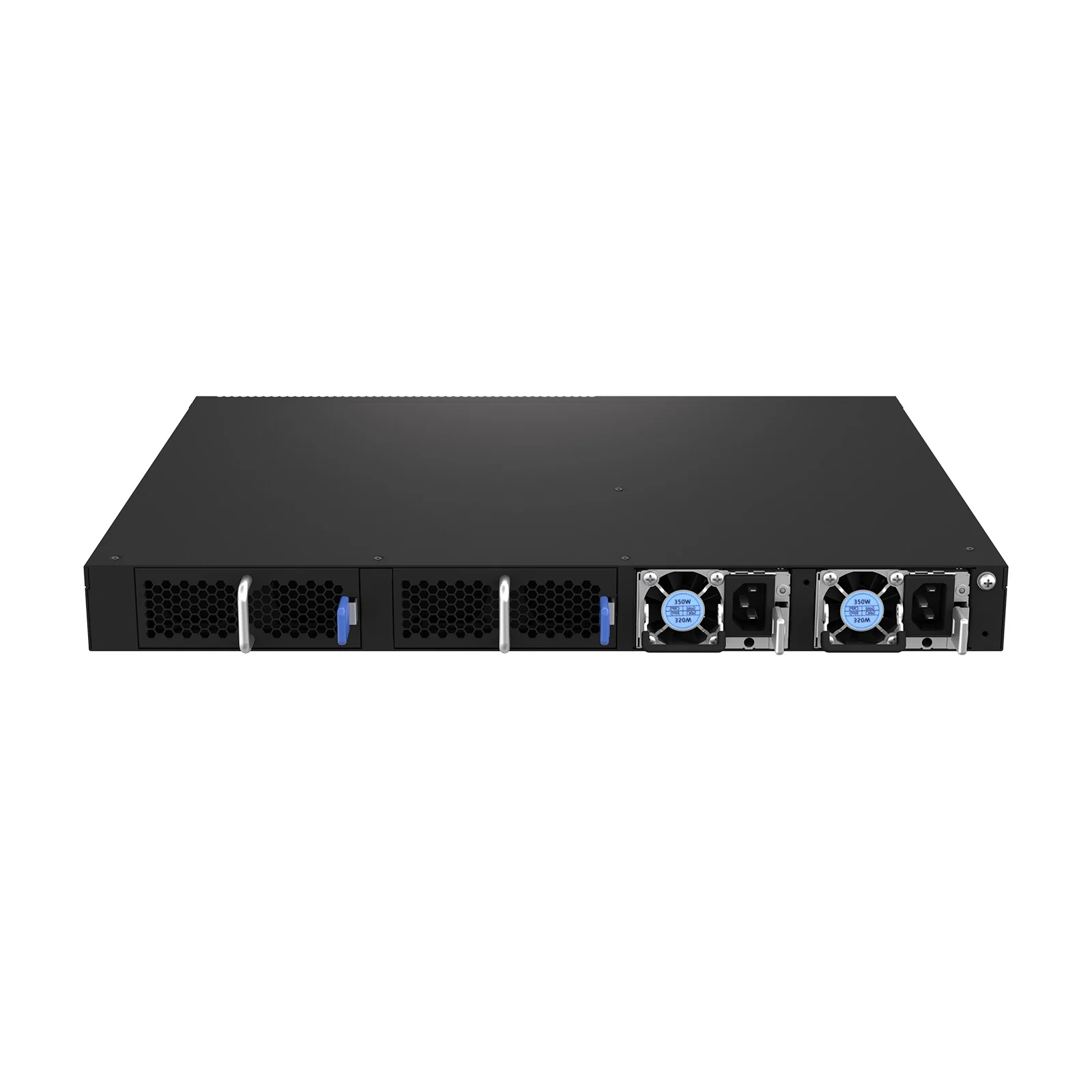

- Resilience: Dual hot-swappable power supplies and fan modules
Application Scenarios
- high-speed multigigabit enterprise and HCI access
- Enterprise, government, metro, and HCI networks
- High-bandwidth access or aggregation with 100GE uplinks
Comparison with Similar Models
| Model | Ports | PoE | Uplink | Best For |
|---|---|---|---|---|
| NSComm S5624T-2Z-EI | 24 x 100M/1G/2.5G/5G/10G Base-T | None | 2 x 100GE QSFP28 | high-speed multigigabit enterprise and HCI access |
| Cisco C9300X-48HX | 48 x multigigabit RJ45 | Varies by model | Modular high-speed uplinks | Campus multigig access |
| Huawei S5732-H48UM2CC | 48 x multigigabit RJ45 | Varies by model | High-speed optical uplinks | Wi-Fi 6 campus access |
Specifications
| Ports | 24 x 100M/1G/2.5G/5G/10G Base-T |
| Uplinks | 2 x 100GE QSFP28 |
| PoE | None |
| Switching Capacity | 880 Gbps |
| Throughput | 1309.44 Mpps |
| Packet Buffer | 4.5MB default / 9MB extended |
| CPU | Dual-core ARM A53 1.2GHz |
| Memory / Flash | 2GB / 8GB |
| Power | Dual hot-swappable AC/DC CRPS |
| Dimensions | 55.7 x 15 x 49.5 cm packaged |
| Operating Temperature | 0°C to 45°C |
| Software Platform | Vastlakes Platform |
Why Choose NSComm S5624T-2Z-EI?
- High-density access with dual 100GE uplinks
- Advanced Layer 2/Layer 3, MPLS, and VXLAN capabilities
- MACsec, PTP, and sub-50ms protection support
- Redundant power and cooling for continuous operation
